Diversi-Tech DOWNDRAFT TABLES are available
in three standard sizes or can be manufactured
to your specifications.
Diversi-Tech’s line of INDUSTRIAL DOWNDRAFT TABLES
incorporate 12 gauge metal construction, built-in
blower/motor combinations, top filter access, deep
dust trays, perforated grating and our reverse pulse
self-cleaning system.
Our tables also include a unique modular interchangeable
top section that incorporates water
trays and metal mesh prefilters for excellent spark
arrestance.

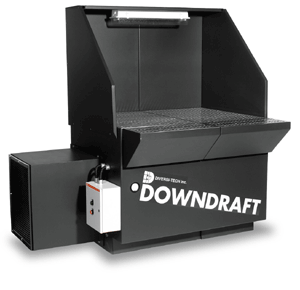

DD 3X4 Self Cleaning
Downdraft Tables |
MINI DD
Downdraft Tables |
The Diversi-Tech Self cleaning downdraft table eliminates the need for costly maintenance and replacement
filters. Compressed air is blown through the filter in the reverse direction, dislodging smoke and dust from
the filter. The solid pollutants are then collected in a dust drawer and emptied periodically. The self cleaning
system is automatically activated each time the table is turned off. Custom sizes available
upon request.
|
The Diversi-Tech Mini-DD incorporates an extended
paper pleat filter with arrestance rating of 92% @ 2 microns
and an aluminum mesh pre-filter as standard arrangement.
The aluminum mesh is washable while the paper filter must
be replaced periodically.
Optional filters available include a washable electrostatic,
with electrostatic charges generated by air flow over
synthetic media. These filters are re-usable.
For gas and odor control, activated carbon in a 3/4" honeycomb
construction is available. Our 2" 20 x 25" filter holds
3.5 lbs of carbon, and provides cleaning efficiencies
of up to three times the life of conventional carbon based
disposable filters.
|
If you'd like some additional information about our downdraft
tables, or for a quote, please
click here
You can also reach us at 1-800-361-3733
or via fax at (514)-340-9408
|
