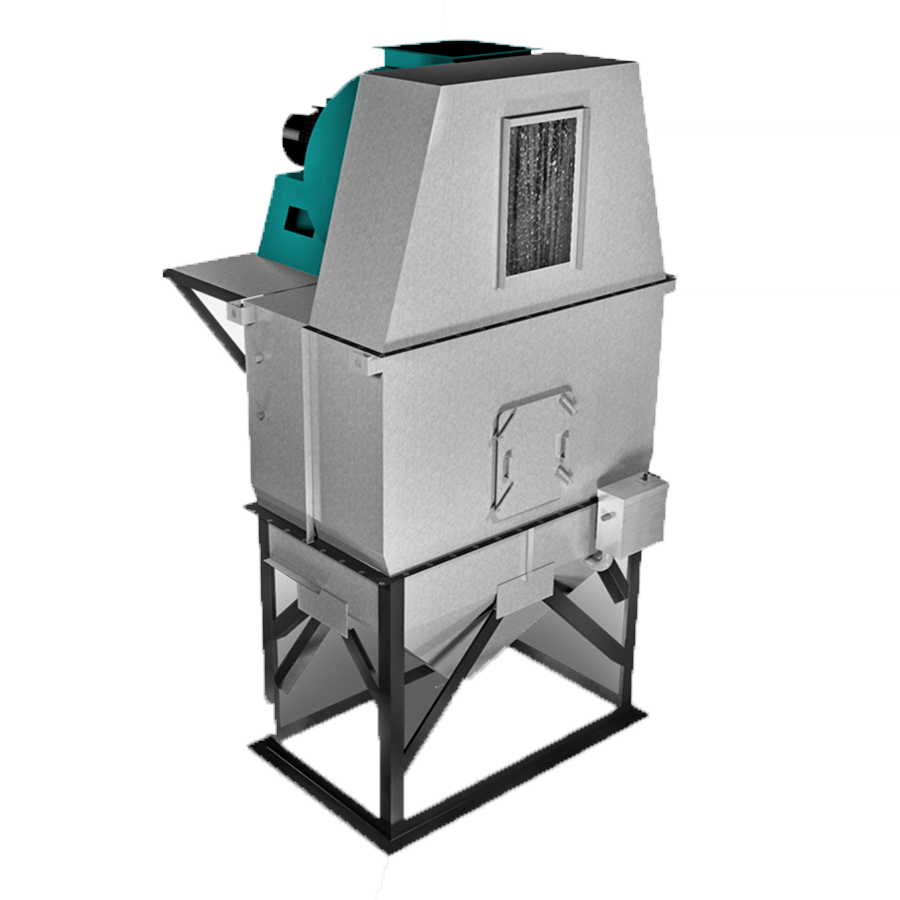

Typhoon Central Wet Dust Collector
typhoon-2-900×900
Features
  • Anti-corrosion Stainless Steel #304 Construction
  • Ultrasonic Auto-fill Water Control System
  • Floor or Hopper floor stand configurations
  • Non Sparking Blower Wheel
Specifications

TY-8000 Model

  • Water Fill System
Auto
  • Nominal Airflow (CFM)
8000
  • Tank Capacity (Gallons)
450
  • Motor H.P.
30
  • Phase (hz)
three-phase 60hz
  • F.L.A. @ 230V/460V/575V
80 / 40 /32
  • Noise @5ft. (dB))
100



TY-10000 Model

  • Water Fill System
Auto
  • Nominal Airflow (CFM)
10000
  • Tank Capacity (Gallons)
450
  • Motor H.P.
40
  • Phase (hz)
three-phase 60hz
  • F.L.A. @ 230V/460V/575V
104 / 52 / 41
  • Noise @5ft. (dB))
100



TY-12000 Model

  • Water Fill System
Auto
  • Nominal Airflow (CFM)
12000
  • Tank Capacity (Gallons)
450
  • Motor H.P.
50
  • Phase (hz)
three-phase 60hz
  • F.L.A. @ 230V/460V/575V
130 / 65 / 52
  • Noise @5ft. (dB))
102



Typhoon Central Wet Dust Collector



Only logged in customers may leave a review.


The stainless steel Typhoon™ wet dust collector excels at capturing combustible/hazardous dust from your plant air. The blower draws air through DiversiTech’s proprietary water-tree baffle design, creating a cascading water effect that removes particles as small as 3 micron from the airstream.

The Typhoon™ wet dust collector works by drawing dust-laden air in through the inlet on the back of the scrubber. A tank of water and a series of internal baffles known as a “water tree” filter the combustible dust via engineered water streams. Dust is filtered through contact with water droplets and contained in the bottom of the collector for safe removal at necessary maintenance intervals. Water levels are automatically controlled with valves and sensors, including interlock functions to meet NFPA and OSHA codes.

The unit can be easily cleaned with an optional wet-vacuum making routine service fast and easy. For applications where the dust generation is further away from the collector, empty downdraft tables or extraction arms are popular options.



Benefits

  • Capture-at-source for Cleaner Air
  • Complies with NFPA guidelines for Combustible Dust
