Features
  • Flexible 32″ x 48″ worksurface
  • On-demand, Reverse Pulse, Self Cleaning
  • High Capture Face Velocity (450 FPM)
  • 3.0HP TEFC Motor producing 2600 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Industrial swivel-castors included
Specifications
  • Filter Cleaning Method
Push-button, Reverse Pulse
  • Avg. Air Flow (CFM)
2600 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
450
  • Motor H.P.
3.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
8.0 / 4.0 / 3.1
  • Worksurface (in.)
48″ W x 32″L
  • Footprint (in.)
48″ W x 39″H x 32″L
  • Weight (lbs.)
380
  • Sound Level (dB)
75 @ 5′
Filter Specifications

Prefilter

  • Type
Metal Mesh spark arrestor
  • Filter Material
Galvanized Steel
  • Qty. Required
2

Primary Filter

  • Filter Media
Nanotech Nanofiber Cartridge Filter
  • Efficiency
MERV 15
  • Qty. Required
1

Nanotech Nanofiber Filter Logo

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

24-pages ‧ English ‧ W16-2

Manual (.PDF)


Only logged in customers may leave a review.


Downdraft\Backdraft Booth
Plasma & Oxy Cutting

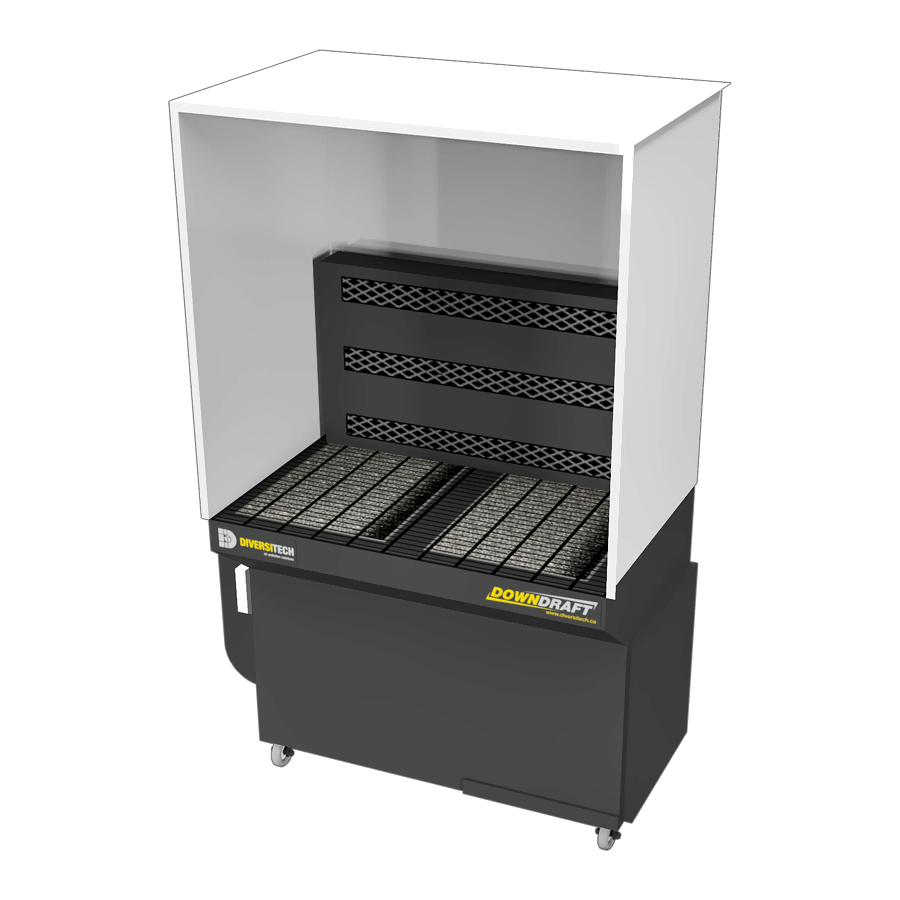

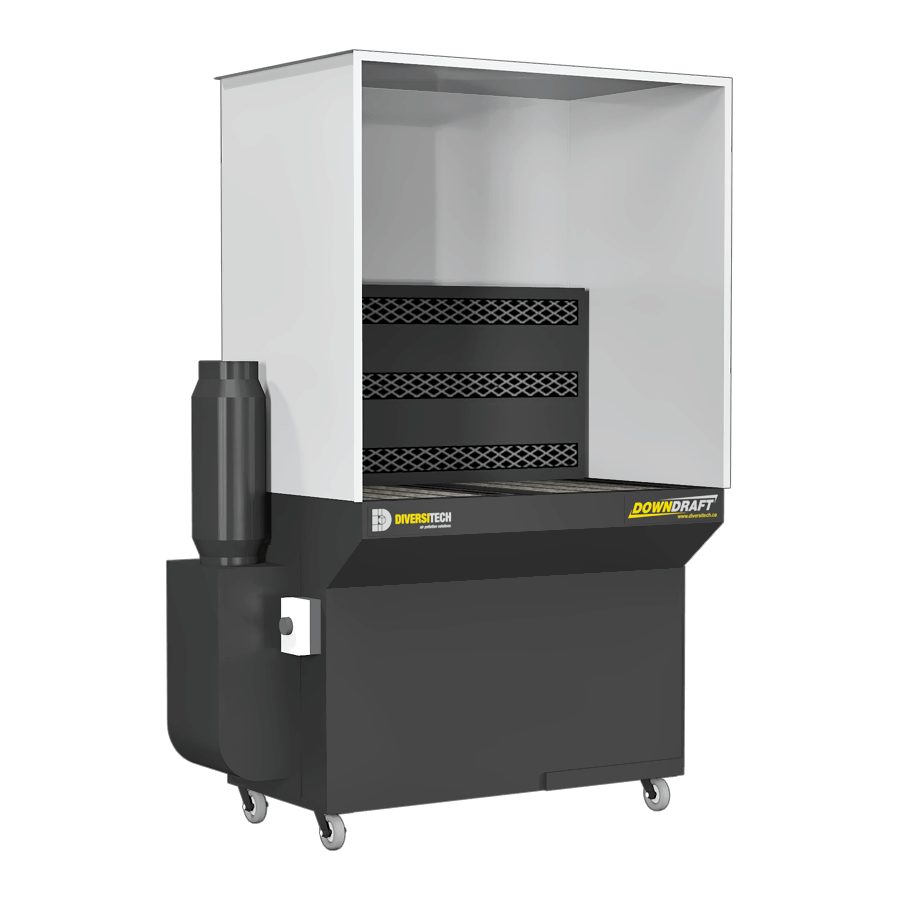

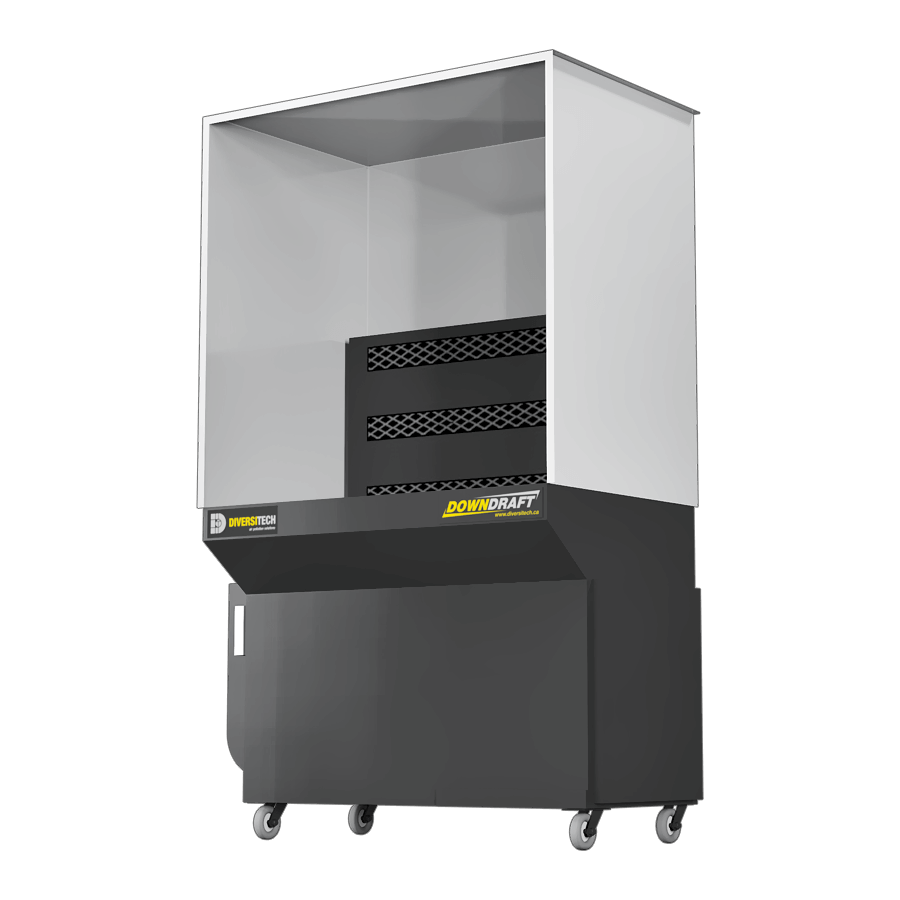

By combining downdraft ventilation with backdraft suction, and enclosing the workspace’s top, back and sides with steel walls, the result is a booth-style workstation capable of containing your toughest pollutants. This 2′ x 4′ (DD-2X4) Downdraft\Backdraft Booth is setup for Plasma & Oxy Cutting includes:

  1. Backdraft Hood with Airflow Control Grates
  2. Full-depth Side & Back Walls, 48″H
  3. Dust & Vapor Proof Light with top plate
  4. 2″ thick steel grates that protect the table from the cutting arc
  5. Crushed gavel baffle tray for safe slag collection
  6. Vertical metal mesh prefilters that extinguish sparks in the airstream

Base

?
Clear

Choose input voltage (required)

Choose a Filter (required)

BUILD UPGRADES (optional)

354 USD $
1,854 USD $
