Features

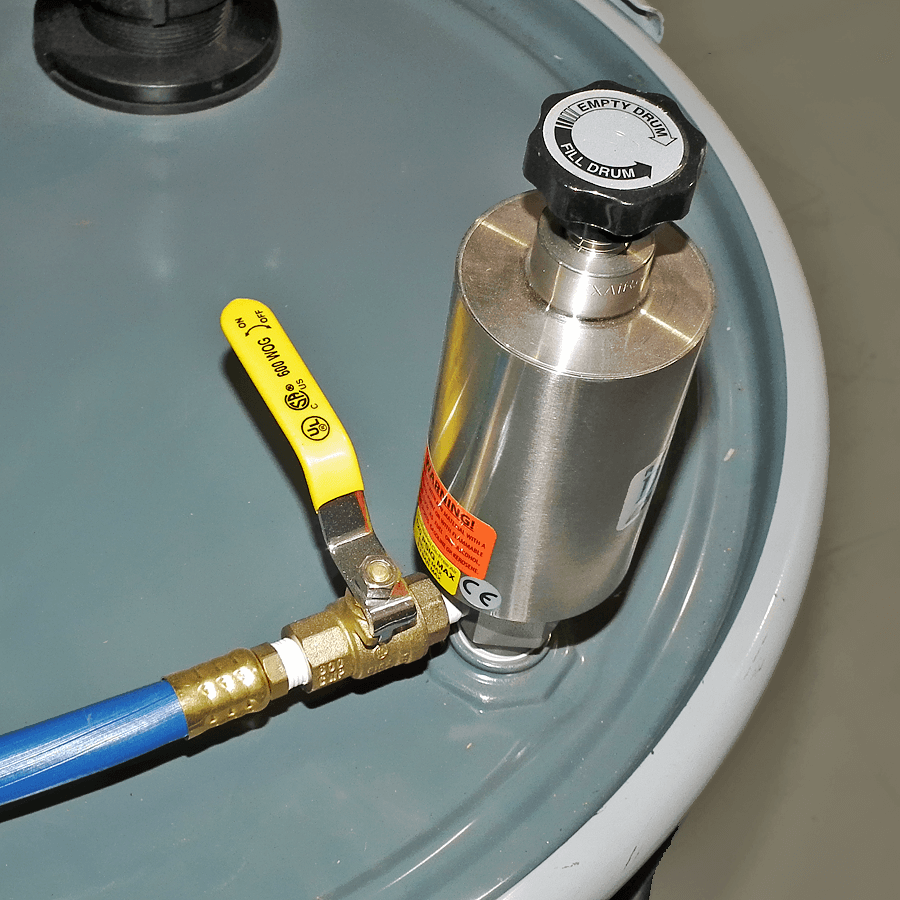

  • Pump assembly with directional flow valve
  • 10’ chemical resistant hose
  • 20’ compressed air hose
  • Aluminum chip wand

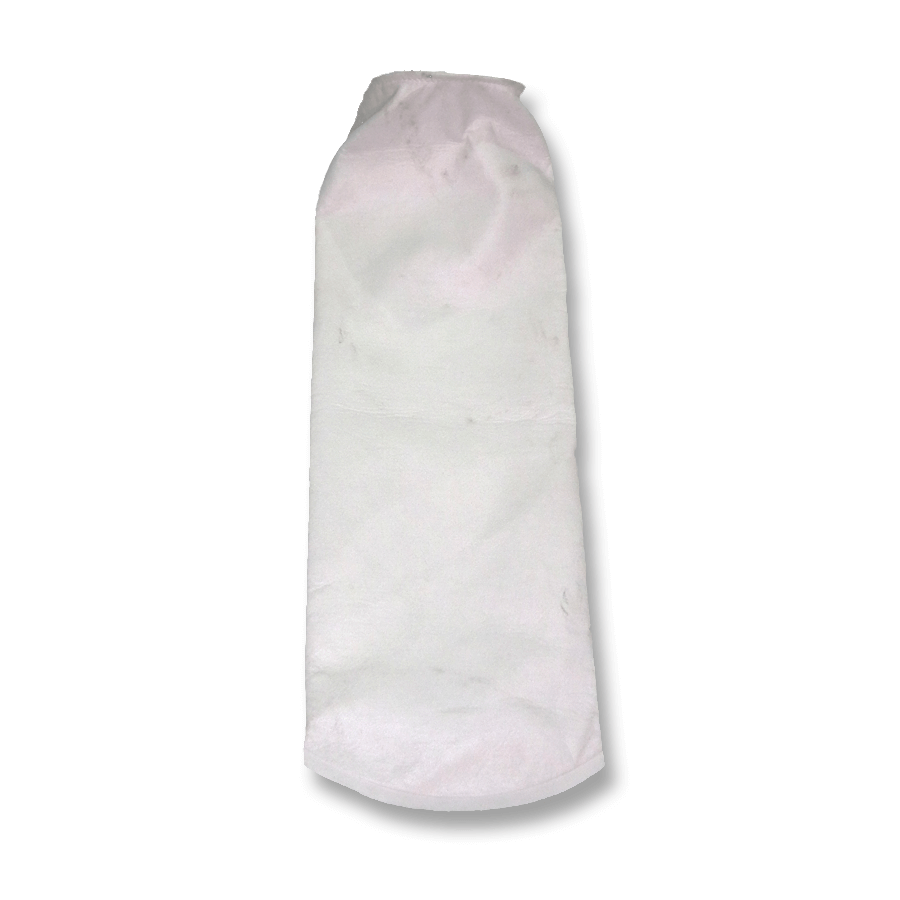

  • Two reusable 5 micron filter bags

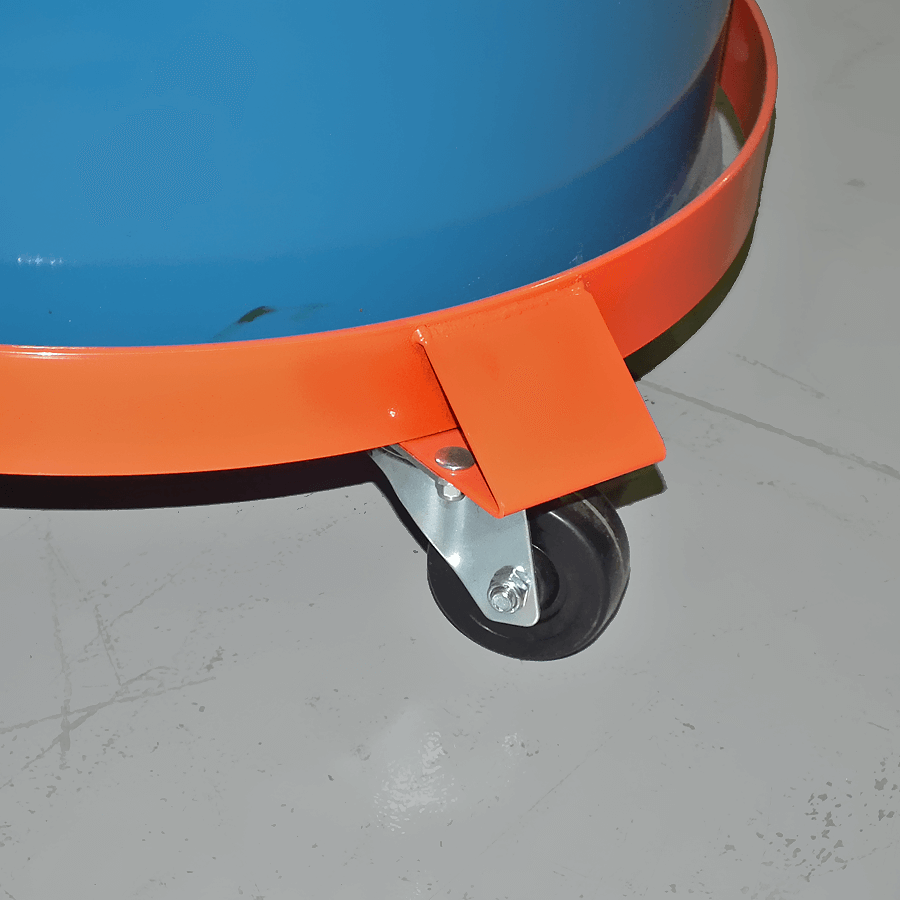

  • Drum dolly
Specifications
  • Air Consumption
19 SCFM
  • Water Flow Rate
30 GPM
  • Footprint (in.)
24″W x 48″H x 24″L
  • Weight (lbs.)
45
  • Sound Level (dB)
86 @ 5′

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)
3,899 USD $

Only logged in customers may leave a review.


The WV Sludge Vacuum offers a fast, easy way to clean dust, chips and swarf out of wet dust collectors and other equipment. The WV-55 vacuums water along with the sludge and collects the solids in a reusable 5 micron filter bag. The vacuum can then pump back out only the water for reuse in the wet collector. The sludge vac is ideal for use on machines with sumps, parts washers or any storage containers with contaminated liquids and reduces manual maintenance requirements.

The WV Sludge Vacuum uses a compressed air powered reversible drum vac that can fill or empty a 55 gallon drum in less than two minutes. Simply set the reversible drum vac pump to “fill” for it to quickly vacuum the liquid and solids. Once the wet collector is empty, set the pump and directional valve to “empty” for it to pump out the liquid for reuse. All the dust, chips and other solids will be collected inside the reusable filter bag for easy disposal.

Drum Capacity

?
Clear

ACCESSORIES

70 USD $
