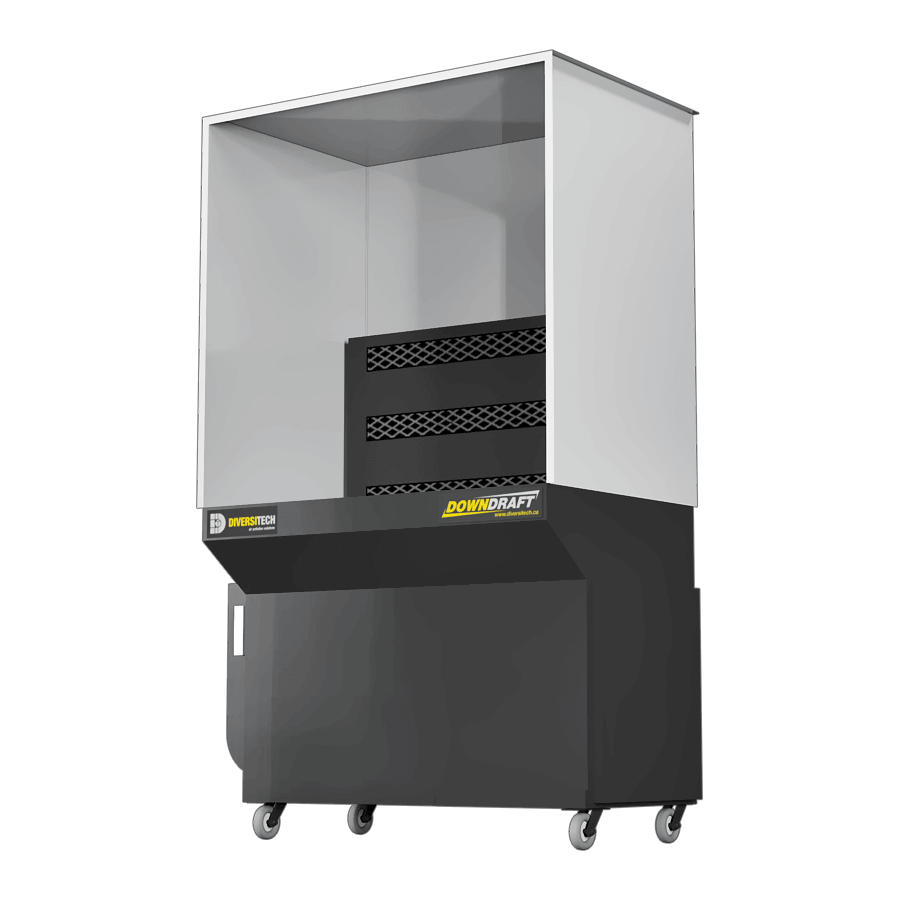

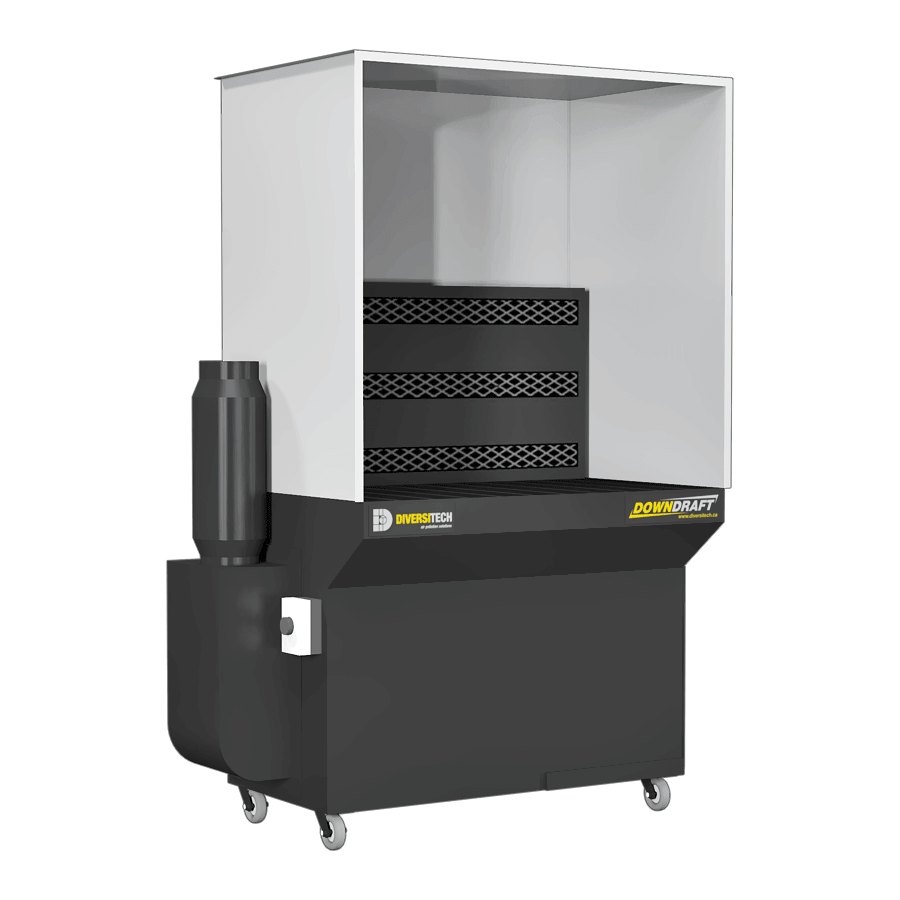

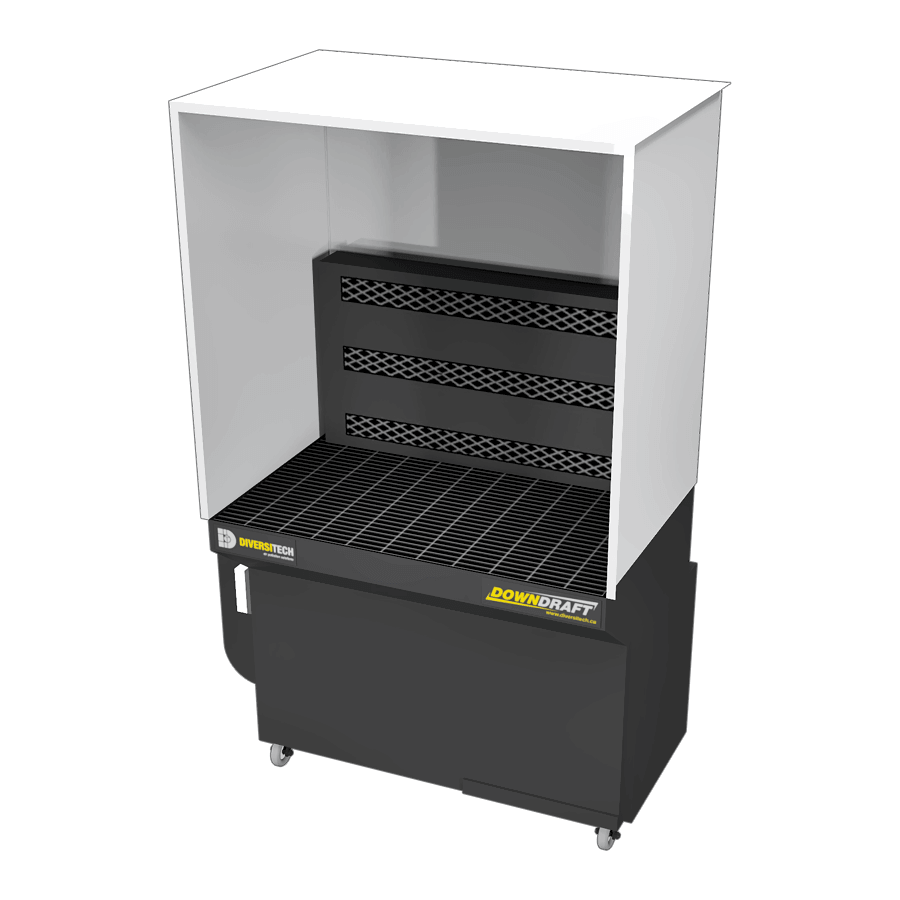

DDB-2X4 Base Downdraft Booth Portable (Three Phase)
DDB-2X4 Base Downdraft Booth Portable (Three Phase)DDB-2X4 Base Downdraft Booth Portable (Three Phase)DDB-2X4 Base Downdraft Booth Portable (Three Phase)DDB-2X4 Base Downdraft Booth Portable (Three Phase)DD-2X4 Downdraft Table Dust DrawerDD-2X4 Downdraft Table Filter DoorDowndraft Table Steel Grate
  • Flexible 32″ x 48″ worksurface
  • On-demand, Reverse Pulse, Self Cleaning
  • High Capture Face Velocity (450 FPM)
  • 3.0HP TEFC Motor producing 2600 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Industrial swivel-castors included
  • Filter Cleaning Method
Push-button, Reverse Pulse
  • Avg. Air Flow (CFM)
2600 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
  • Motor H.P.
  • Phase (hz)
  • F.L.A. @ 230V/460V/575V
8.0 / 4.0 / 3.1
  • Worksurface (in.)
48″ W x 32″L
  • Footprint (in.)
48″ W x 39″H x 32″L
  • Weight (lbs.)
  • Sound Level (dB)
75 @ 5′
Filter Specifications


  • Type
Metal Mesh spark arrestor
  • Filter Material
Galvanized Steel
  • Qty. Required

Primary Filter

  • Filter Media
Nanotech Nanofiber Cartridge Filter
  • Efficiency
  • Qty. Required

Nanotech Nanofiber Filter Logo

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)


24-pages ‧ English ‧ W16-2

Manual (.PDF)

Only logged in customers may leave a review.

Downdraft\Backdraft Booth
Welding, Grinding, and Deburring

By combining downdraft ventilation with backdraft suction, and enclosing the workspace’s top, back and sides with steel walls, the result is a booth-style workstation capable of containing your toughest pollutants. This 2′ x 4′ (DD-2X4) Downdraft\Backdraft Booth is setup for Welding, Grinding, and Deburring includes:

  1. Backdraft Hood with Airflow Control Grates
  2. Full-depth Side & Back Walls, 48″H
  3. Dust & Vapor Proof Light with top plate
  4. Metal Mesh Prefilters
  5. Grounding Lug



Input voltage (required) *




234 USD $
354 USD $
1,854 USD $
