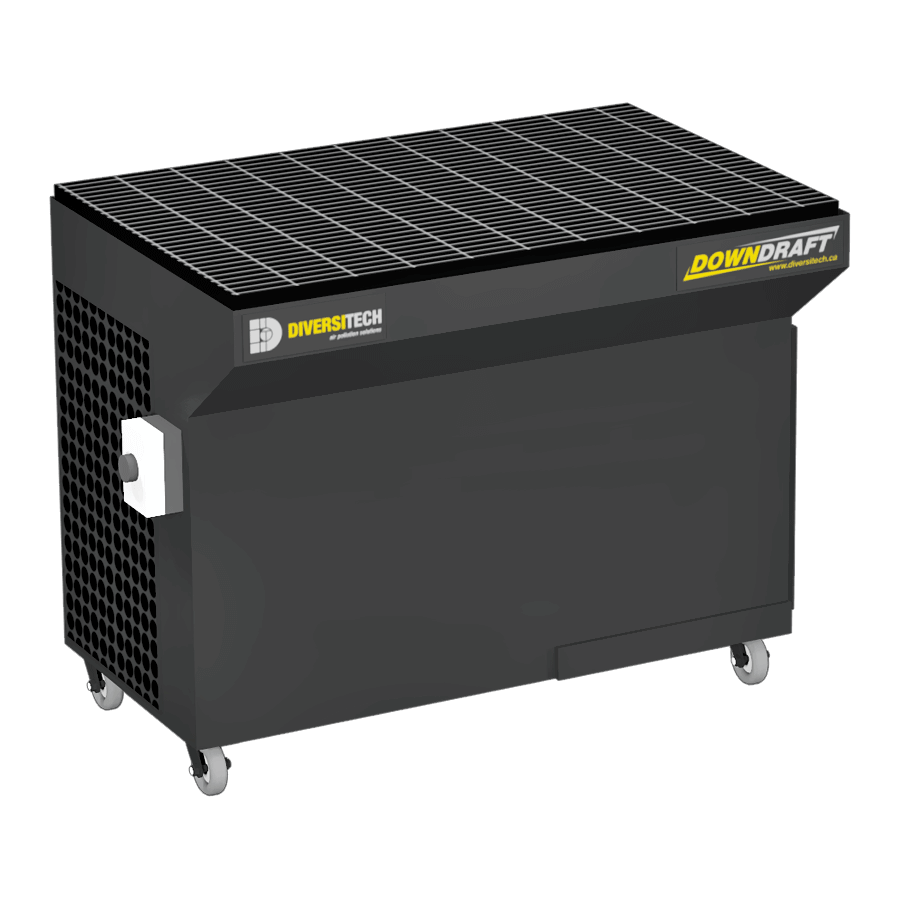

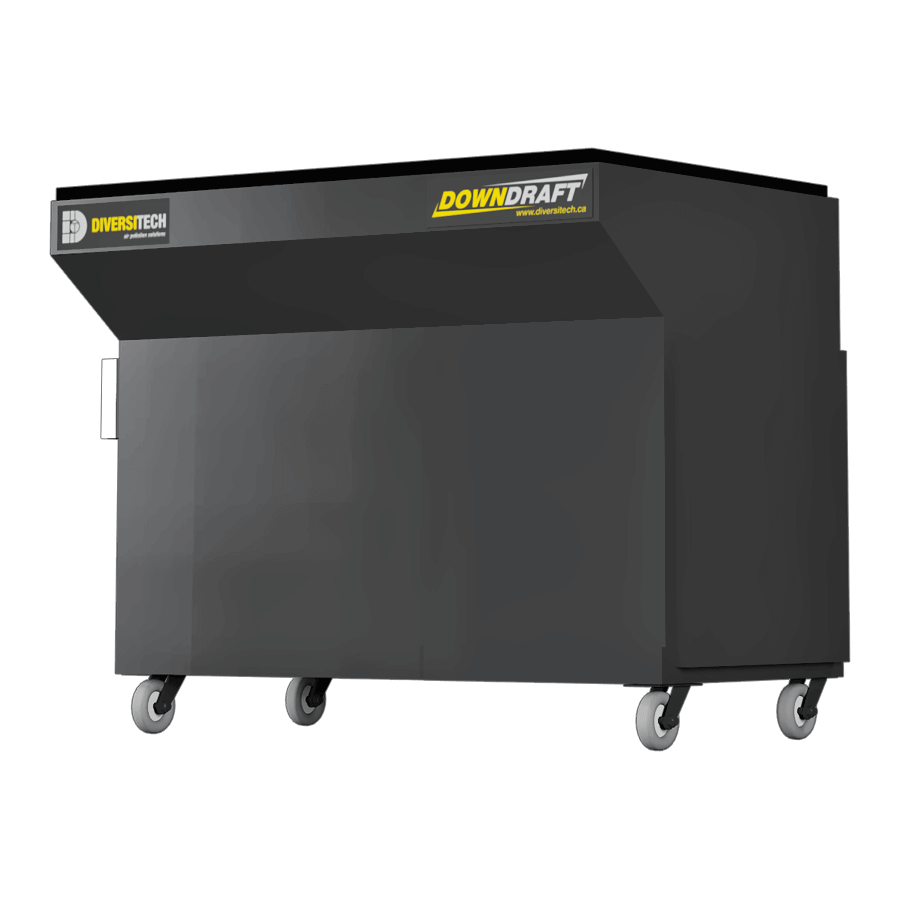

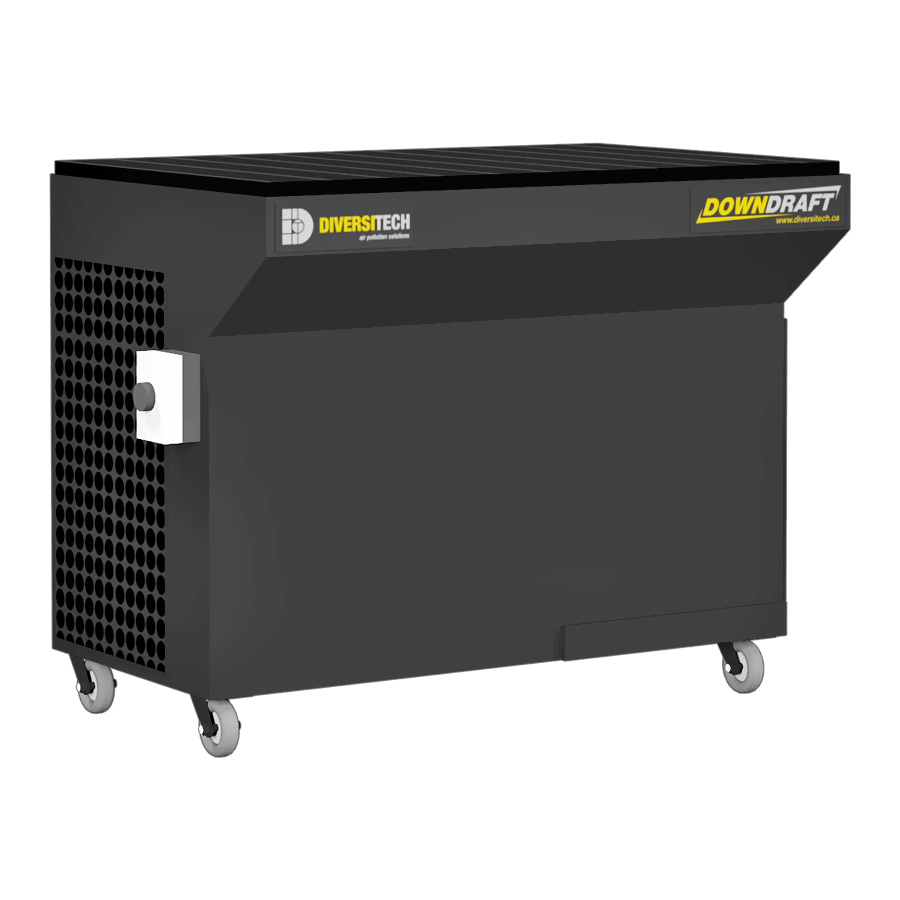

DD-2X4 Base Downdraft Table, Portable (Single Phase)
DD2x4-Basic-4DD2x4-Basic-1DD2x4-Basic-3DD2x4-Basic-2Downdraft Table Steel GrateDD-2X4 Downdraft Table Filter DoorDD-2X4 Downdraft Table Dust Drawer
Specifications
  • Filter Cleaning Method
Push-button, Reverse Pulse
  • Avg. Air Flow (CFM)
1500 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
340
  • Motor H.P.
1.5
  • Phase (hz)
single-phase
  • F.L.A. @ 120V
14.2
  • Worksurface (in.)
48″ W x 32″L
  • Footprint (in.)
48″ W x 39″H x 32″L
  • Weight (lbs.)
280
  • Sound Level (dB)
75 @ 5′

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

24-pages ‧ English ‧ W16-2

Manual (.PDF)

DD 2′ X 4′ Downdraft Table | 1500CFM

, ,
5.00 out of 5 based on 2 customer ratings


Only logged in customers may leave a review.


With a 2’x4′ ventilated worksurface, and plug & play 120V single-phase input power, this portable downdraft table series ensures flexible use as your pollution control needs change. These tables are fitted with industrial swivel castors, and an industry leading, high efficiency, nanofiber cartridge filter. Now any fumes, smoke, or dust from your shop activities can be captured right as they are produced, before compromising your indoor air quality.

  • Flexible 32″ x 48″ worksurface
  • On-demand, Reverse Pulse, Self Cleaning
  • Multi-stage Spark Arrestence Baffling
  • Industrial swivel-castors included
  • 120V single-phase, plug & play
  • 1.5HP TEFC Motor (1500 CFM airflow)
  • High Capture Face Velocity (340 FPM)
  • Dust Drawer for easy servicing

Build-to-Order

Base

?
Clear

TABLE SURFACE SETUP (REQUIRED) *

PRIMARY FILTER SETUP (REQUIRED) *

Enclosures (optional)

Upgrades (optional)

234 $
354 $
1,854 $
