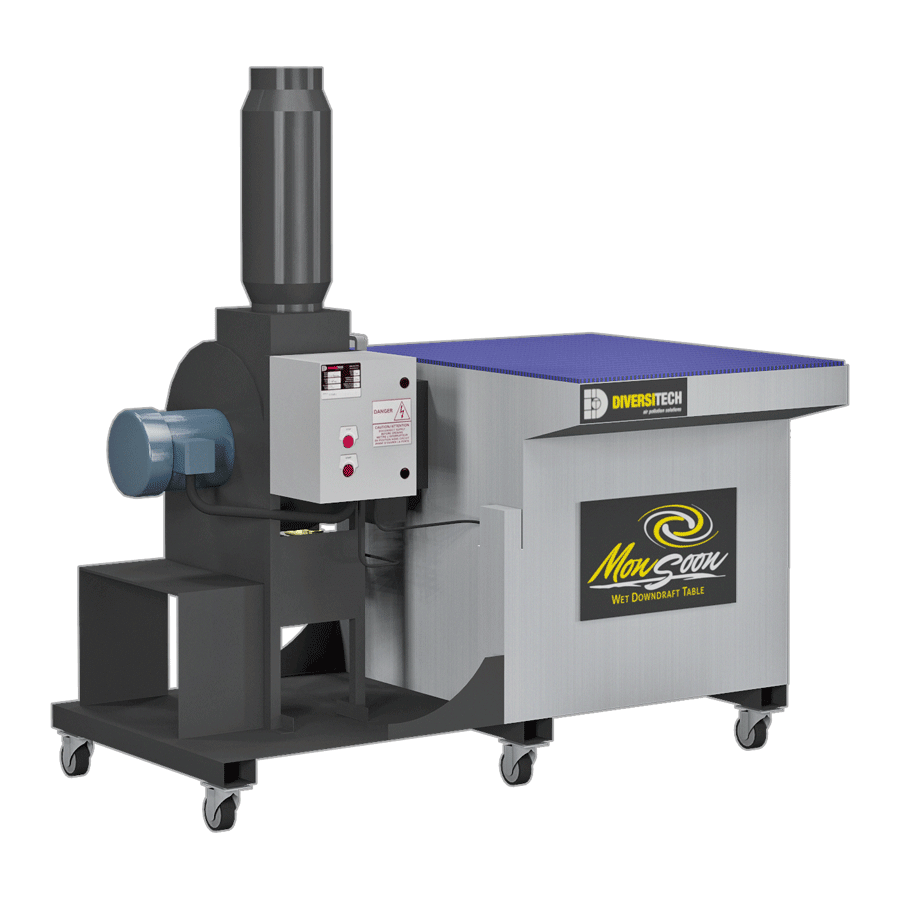

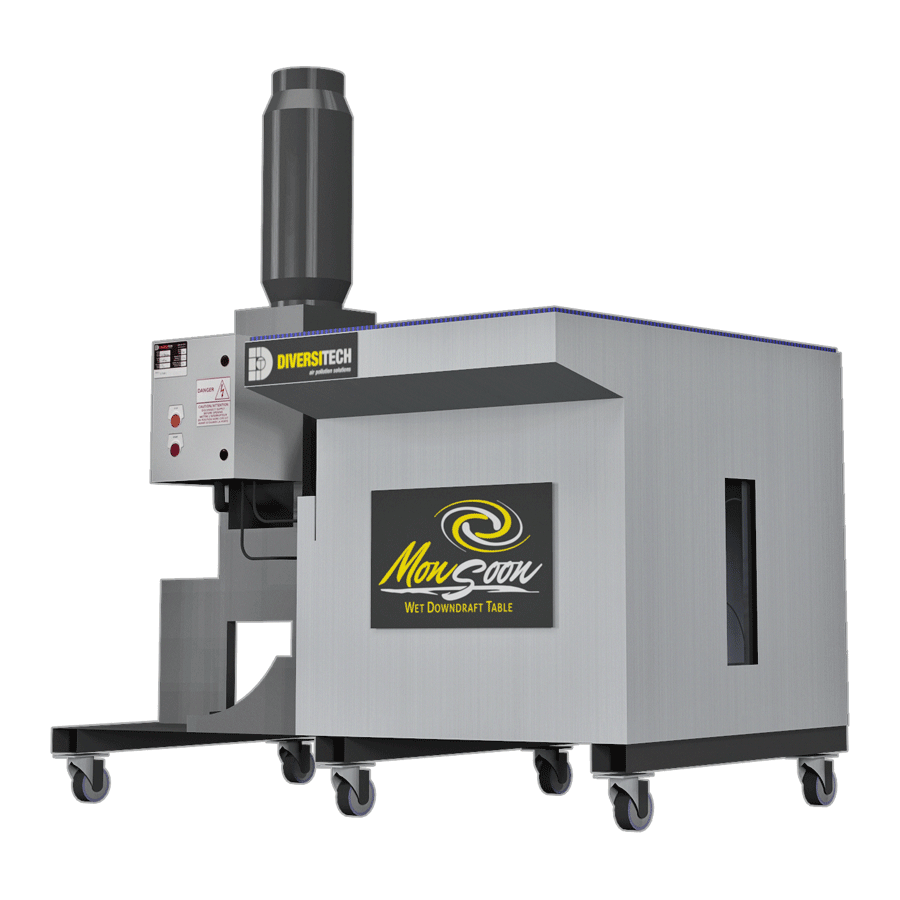

MDD-MINI Monsoon Wet Downdraft Table (Three Phase)
  • Flexible 38″ x 36″ worksurface
  • Low Water Auto-shutdown
  • Stainless Steel Construction
  • 3.0HP TEFC Motor producing 1200 CFM of airflow
  • Heavy-duty Steel Bar Grating with Protective Mat
  • Mist Eliminator After-filter, 99% @ 3 microns
  • NEMA 12 Control Panel with Overload Protection
  • Water Fill System
  • Nominal Air Flow (CFM)
  • Avg. Face Velocity (FPM)
  • Motor H.P.
  • Phase (hz)
  • F.L.A. @ 230V/460V/575V
9.6 / 4.8 / 3.9
  • Worksurface (in.)
38″W x 36″L
  • Footprint (in.)
60″W x 39″H x 42″L
  • Weight (lbs.)
  • Sound Level (dB)
72 @ 5′

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)


20-pages ‧ English ‧ W15-3

Manual (.PDF)

Only logged in customers may leave a review.

The MONSOON™ Wet Downdraft Table product series delivers the safe capture of hazardous/combustible dusts with the smallest equipment footprint in the industry. Small footprint means no permanent ducting. The self-contained, mobile design allows for plug and play installation and easy relocation. A powerful, side-mounted 3.0HP TEFC motor delivers high face-velocity across a versatile 38″ wide by 36″ deep ventilated work surface. The Monsoon MINI complies with all OSHA & NFPA guidelines for safe capture of combustible dust.
