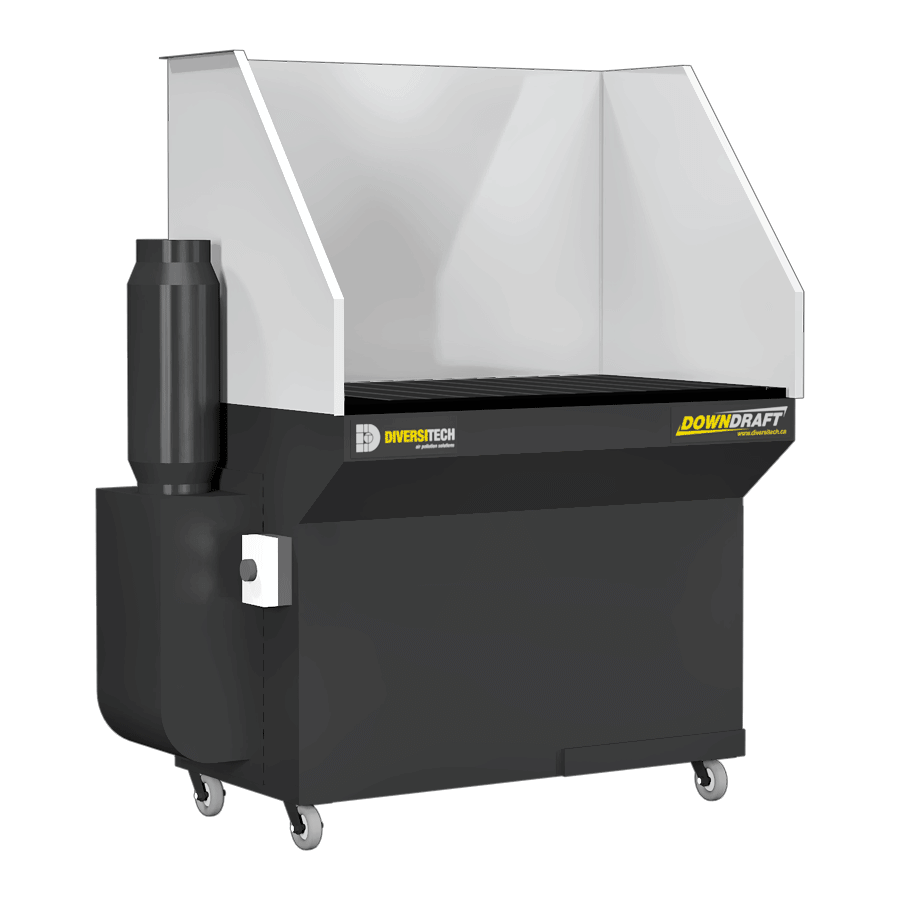

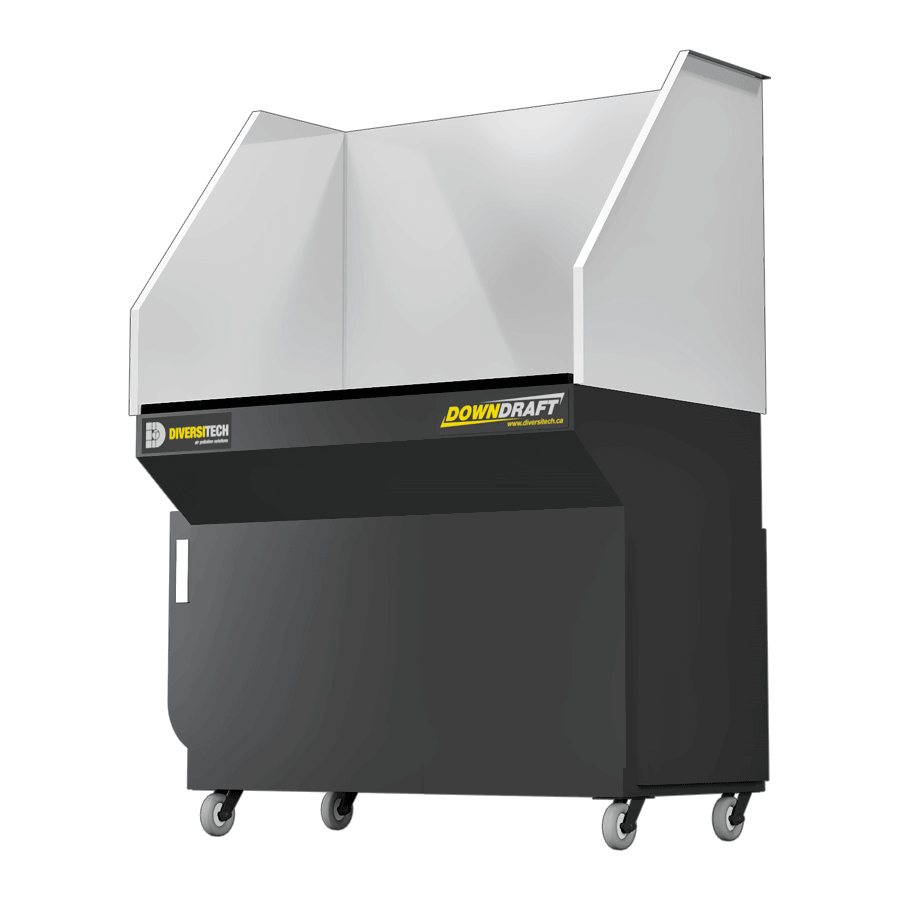

DD-2X4 3HP Downdraft Table with Welding, Grinding, and Deburring Kit

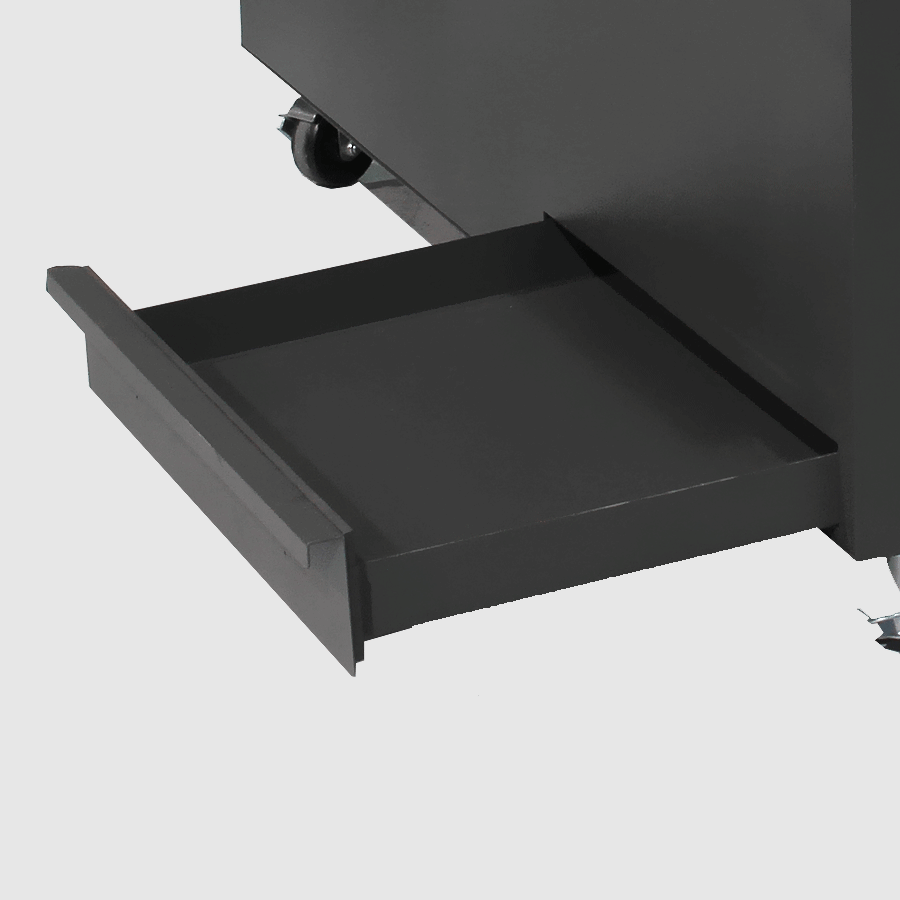

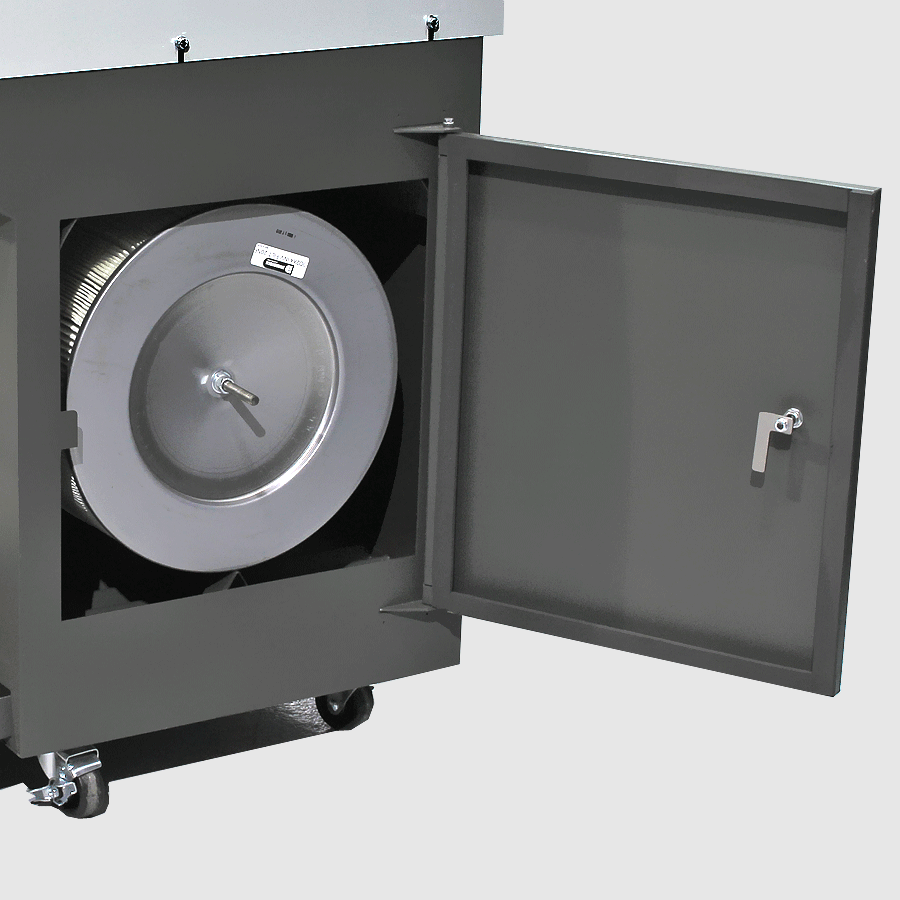

DD2x4-WGD3HP-4DD2x4-WGD3HP-3DD2x4-WGD3HP-2DD2x4-WGD3HP-1Downdraft Table Steel GrateDD-2X4 Downdraft Table Filter DoorDD-2X4 Downdraft Table Dust DrawerDowndraft Table Grounding Lug
Features
  • Flexible 32″ x 48″ worksurface
  • On-demand, Reverse Pulse, Self Cleaning
  • High Capture Face Velocity (450 FPM)
  • 3.0HP TEFC Motor producing 2600 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Industrial swivel-castors included
Specifications
  • Filter Cleaning Method
Push-button, Reverse Pulse
  • Avg. Air Flow (CFM)
2600 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
450
  • Motor H.P.
3.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
8.0 / 4.0 / 3.1
  • Worksurface (in.)
48″ W x 32″L
  • Footprint (in.)
48″ W x 39″H x 32″L
  • Weight (lbs.)
280
  • Sound Level (dB)
75 @ 5′
Filter Specifications

Prefilter

  • Type
Metal Mesh spark arrestor
  • Filter Material
Galvanized Steel
  • Qty. Required
2

Primary Filter

  • Filter Media
Nanotech Nanofiber Cartridge Filter
  • Efficiency
MERV 15
  • Qty. Required
1

Nanotech Nanofiber Filter Logo

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

24-pages ‧ English ‧ W16-2

Manual (.PDF)

DD 2′ X 4′ Downdraft Table WGD | 2600CFM

, , ,
8,599 USD $

Only logged in customers may leave a review.


With a 2’x4′ ventilated worksurface, and a powerful 3.0 HP three-phase input power motor, this  portable downdraft table series ensures flexible use as your pollution control needs change. These tables are fitted with industrial swivel castors, and an industry leading, high efficiency, nanofiber cartridge filter. Now any fumes, smoke, or dust from your shop activities can be captured right as they are produced, before compromising your indoor air quality.

Welding, Grinding, Deburring Kit includes:

  • Side & Back Walls
  • Metal Mesh Prefilter
  • Grounding Lug

Voltage

?
Clear

ENCLOSURE OPTIONS

702 USD $
937 USD $

BUILD OPTIONS

254 USD $
354 USD $
1,055 USD $
1,854 USD $
