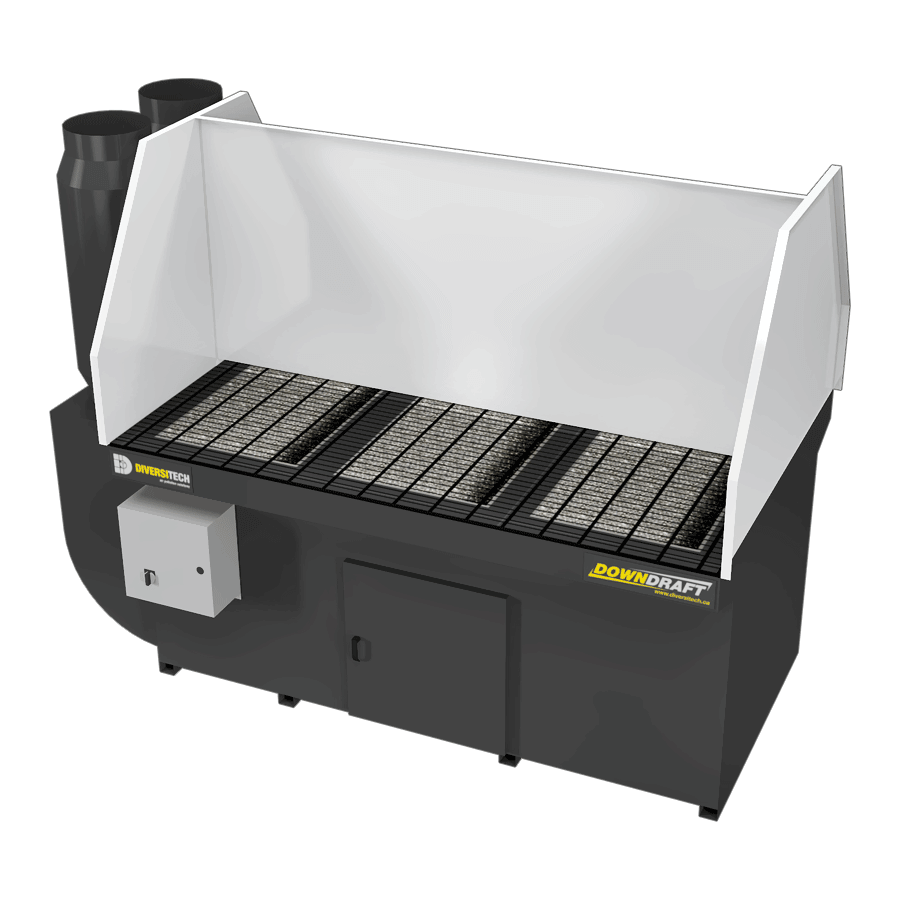

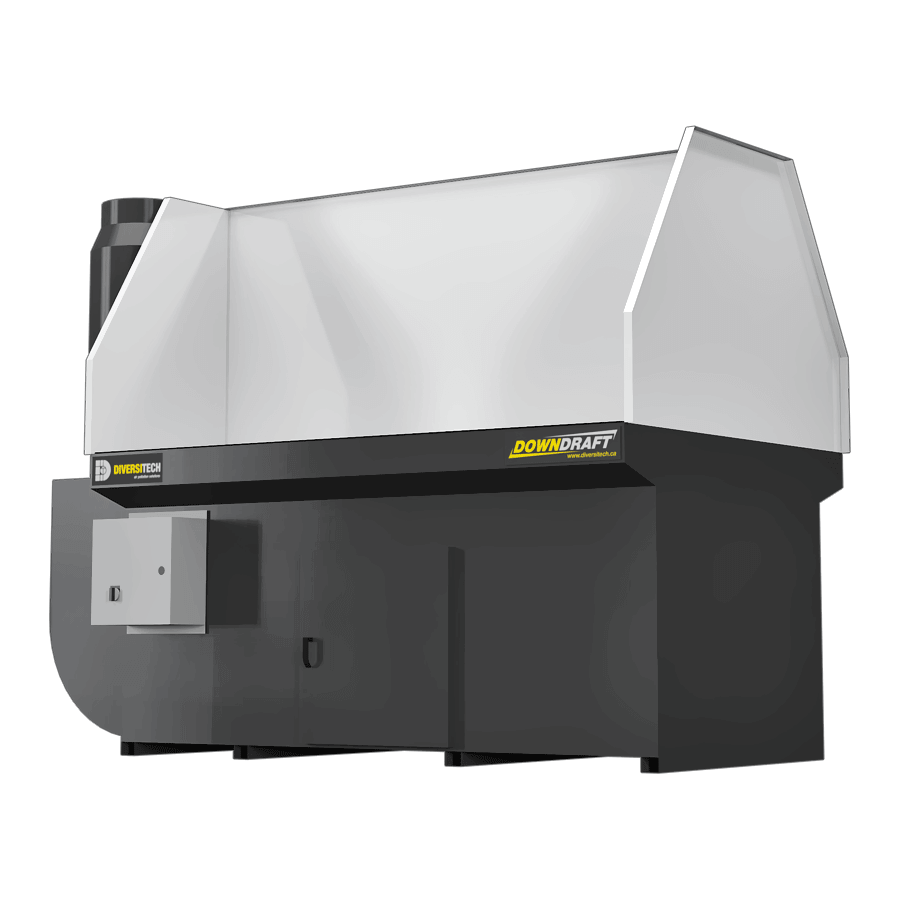

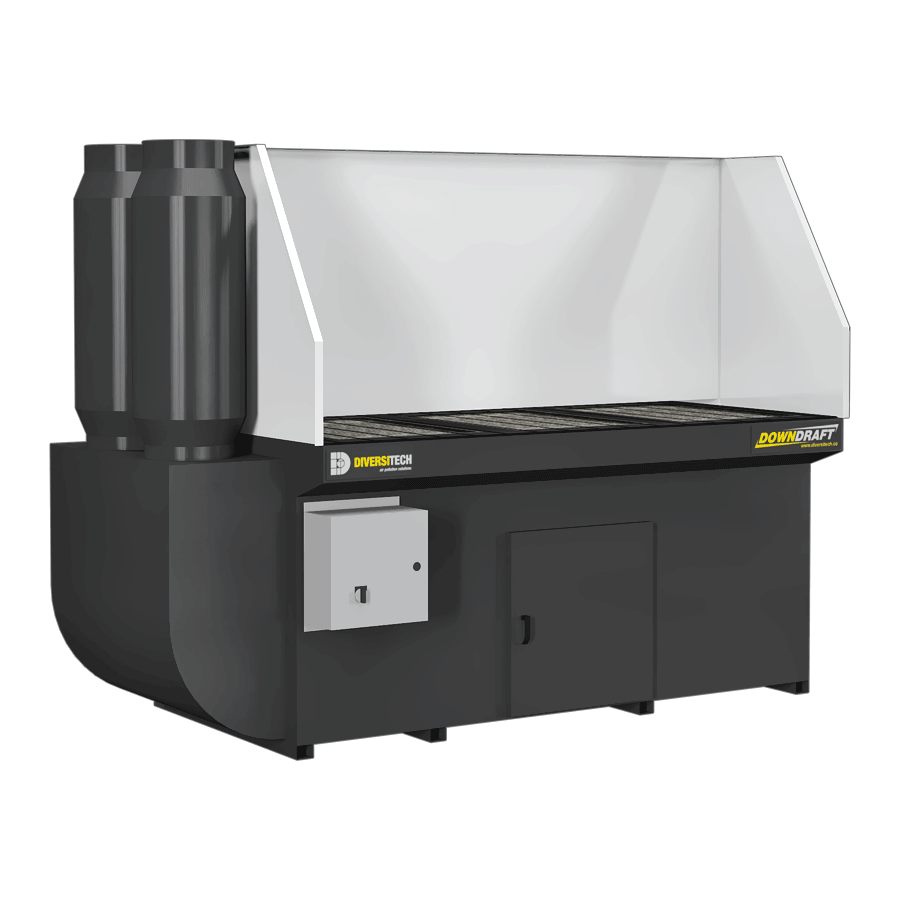

DD-4X6 Downdraft Table for Oxy and Plasma Cutting
DD4x6-PLA-1DD4x6-PLA-2DD4x6-PLA-3DD4x6-PLA-4Industrial Downdraft Table Filter DoorIndustrial Downdraft Table Dust DoorIndustrial Downdraft Table Plasma Cutting Slag Prefilter
  • Flexible, dual-sided 48″ x 72″ worksurface
  • Automatic Reverse Pulse Self Cleaning
  • High Capture Face Velocity (375 FPM)
  • 10.0HP TEFC Motor producing 5050 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Dual 10″ exhaust silencers included
  • Filter Cleaning Method
Auto reverse-pulse system
  • Avg. Air Flow (CFM)
6300 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
  • Motor H.P.
  • Phase (hz)
  • F.L.A. @ 230V/460V/575V
28 / 14 / 11
  • Worksurface (in.)
72″W x 48″L
  • Footprint (in.)
87″W x 39″H x 49″L
  • Weight (lbs.)
  • Sound Level (dB)
79 @ 5′
Filter Specifications


  • Type
Metal Mesh spark arrestor
  • Filter Material
Galvanized Steel
  • Qty. Required

Primary Filter

  • Filter Media
Nanotech Nanofiber Cartridge Filter
  • Efficiency
  • Qty. Required

Nanotech Nanofiber Filter Logo

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)


20-pages ‧ English ‧ W14-4

Manual (.PDF)

Only logged in customers may leave a review.

The DD series industrial downdraft tables are the trusted choice of North America’s largest manufacturers. Heavy duty applications producing smoke, dust, or fumes can now be contained right at the source. This ventilated, dual-sided, 4′ by 6′ work surface (DD-4X6) can be configured to suit dozens of industrial applications. As standard, the table comes fitted with a multi-stage spark arrestance baffle, dual 10″ exhaust silencers, and an automatic reverse-pulse filter cleaning system.

Plasma Cutting Kit includes:

  • Upgraded 10.0HP TEFC Motor
  • Side & Middle Walls
  • 2″ Steel Bar Grating
  • Slag Collection Baffle
  • Vertical Metal Mesh Prefilters
  • Nanotech XV high-efficiency Primary Filters (2)




1,376 USD $


282 USD $
369 USD $
1,822 USD $
1,742 USD $
2,957 USD $
