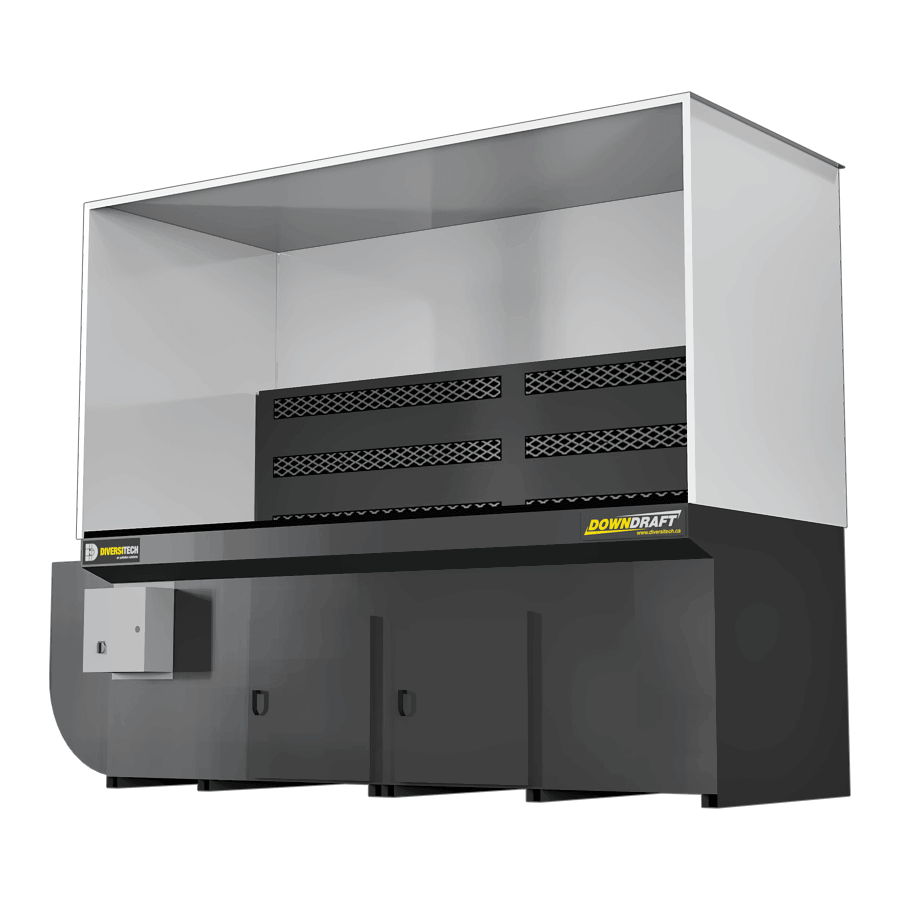

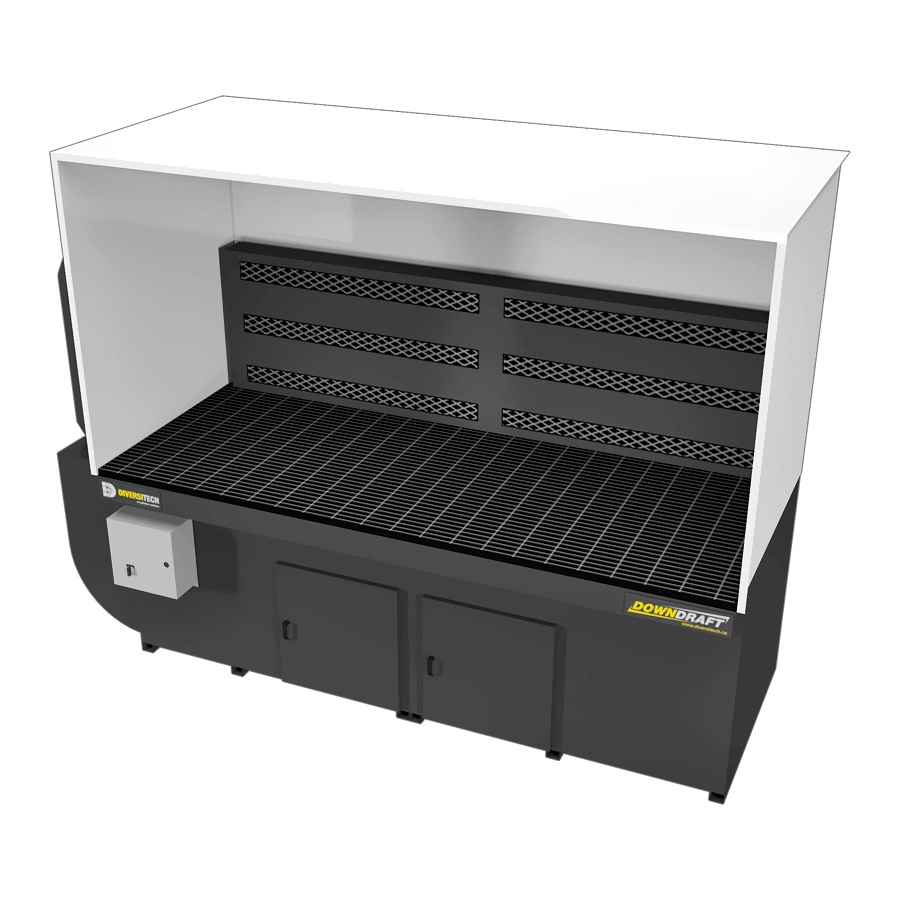

3X8 Downdraft Booth for Welding, Grinding and Deburring
DBB-3X8 Downdraft Booth with Welding, Grinding, and Deburring KitDBB-3X8 Downdraft Booth with Welding, Grinding, and Deburring KitDBB-3X8 Downdraft Booth with Welding, Grinding, and Deburring KitDBB-3X8 Downdraft Booth with Welding, Grinding, and Deburring KitDowndraft Table Steel GrateIndustrial Downdraft Table Filter DoorIndustrial Downdraft Table Dust Door
Features
  • Flexible 96″ x 42″ worksurface
  • Automatic Reverse Pulse Self Cleaning
  • High Capture Face Velocity (330 FPM)
  • 7.5HP TEFC Motor producing 5050 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Dual 10″ exhaust silencers included
Specifications
  • Filter Cleaning Method
 Auto reverse-pulse system
  • Avg. Air Flow (CFM)
 5050 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
 330
  • Motor H.P.
 7.5
  • Phase (hz)
 three-phase
  • F.L.A. @ 230V/460V/575V
 17.2 / 8.6 / 7.0
  • Worksurface (in.)
 96″W x 42″L
  • Footprint (in.)
 111″W x 39″H x 49″L
  • Weight (lbs.)
 600
  • Sound Level (dB)
 79 @ 5′

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W14-4

Manual (.PDF)


Only logged in customers may leave a review.

Downdraft\Backdraft Booth
Welding, Grinding, and Deburring

By combining downdraft ventilation with backdraft suction, and enclosing the workspace’s top, back and sides with steel walls, the result is a booth-style workstation capable of containing your toughest pollutants. This 3′ x 8′ (DD-3X8) Downdraft\Backdraft Booth is setup for Welding, Grinding, and Deburring:

  1. Backdraft Hood with Airflow Control Grates
  2. Full-depth Side & Back Walls, 48″H
  3. Dust & Vapor Proof Light with top plate
  4. Metal Mesh Prefilters
  5. Grounding Lug

Base

?
Clear

Input voltage (required) *

TABLE SURFACE SETUP (REQUIRED) *

PRIMARY FILTER SETUP (REQUIRED) *

BUILD UPGRADES (optional)

375 USD $
428 USD $
369 USD $
2,957 USD $
