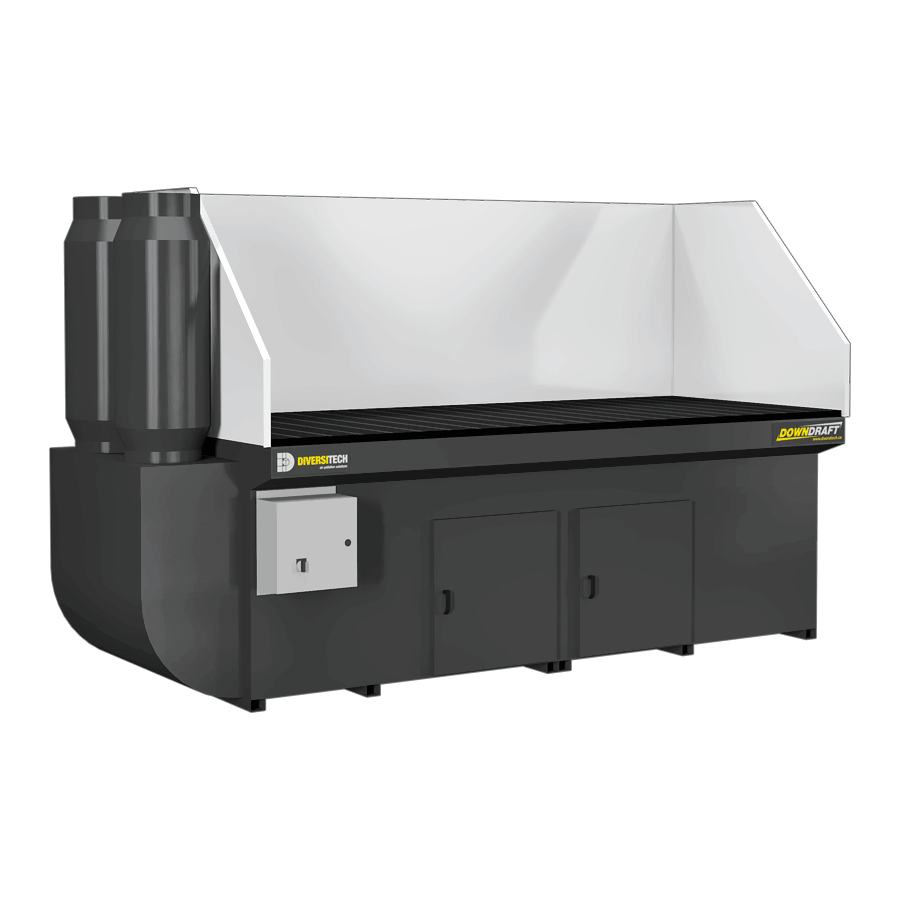

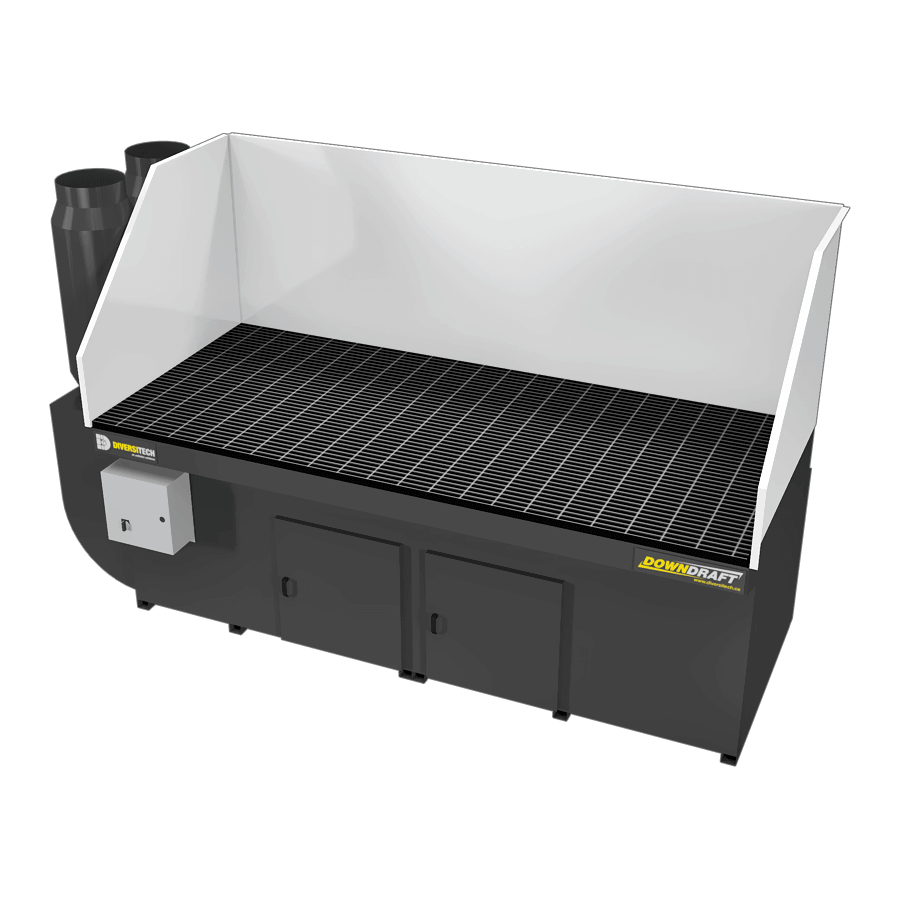

DD-3X8 Downdraft Table with Welding, Grinding, and Deburring Kit
DD3x8-WGD-4DD3x8-WGD-1DD3x8-WGD-2DD3x8-WGD-3Industrial Downdraft Table Filter DoorIndustrial Downdraft Table Dust DoorDowndraft Table Steel GrateDowndraft Table Grounding Lug
  • Flexible 96″ x 42″ worksurface
  • Automatic Reverse Pulse Self Cleaning
  • High Capture Face Velocity (330 FPM)
  • 7.5HP TEFC Motor producing 5050 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Dual 10″ exhaust silencers included
  • Filter Cleaning Method
Auto reverse-pulse system
  • Avg. Air Flow (CFM)
5050 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
  • Motor H.P.
  • Phase (hz)
  • F.L.A. @ 230V/460V/575V
22 / 11 / 9
  • Worksurface (in.)
96″W x 42″L
  • Footprint (in.)
111″W x 39″H x 49″L
  • Weight (lbs.)
  • Sound Level (dB)
79 @ 5′


Filter Specifications


  • Type
Metal Mesh spark arrestor
  • Filter Material
Galvanized Steel
  • Qty. Required

Primary Filter

  • Filter Media
Nanotech Nanofiber Cartridge Filter
  • Efficiency
  • Qty. Required

Nanotech Nanofiber Filter Logo

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)


20-pages ‧ English ‧ W14-4

Manual (.PDF)

DD 3′ X 8′ Downdraft Table WGD | 5050CFM

, , ,
18,017 $

Only logged in customers may leave a review.

The DD series industrial downdraft tables are the trusted choice of North America’s largest manufacturers. Heavy duty applications producing smoke, dust, or fumes can now be contained right at the source. With a ventilated work surface 3′ deep by 8′ wide (DD-3X8) can be configured to suit dozens of industrial applications. As standard, the table comes fitted with a multi-stage spark arrestance baffle, dual 10″ exhaust silencers, and an automatic reverse-pulse filter cleaning system.

  • Side & Back Walls
  • Metal Mesh Prefilters (8)
  • Nanotech XV high-efficiency Primary Filters (4)
  • Grounding Lug




1,253 $
1,493 $


375 $
428 $
369 $
2,493 $
2,957 $
