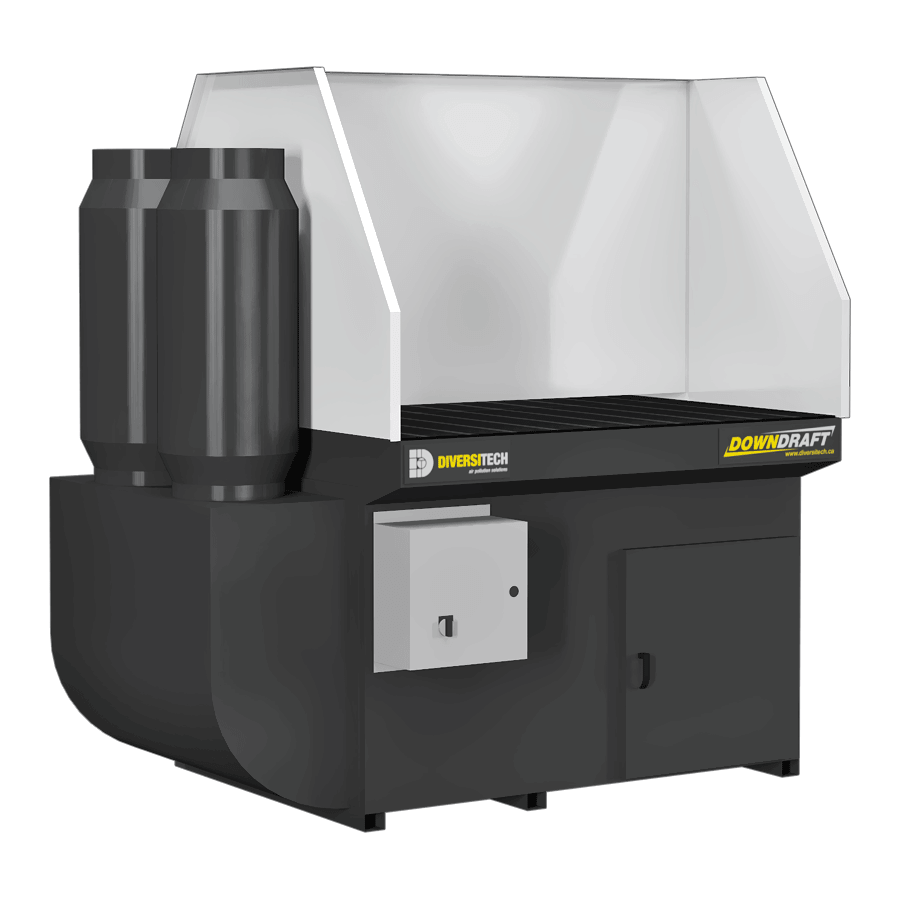

DD-4X4 Downdraft Table with Welding, Grinding, and Deburring Kit

Features

Flexible, dual-sided 48″ x 48″ worksurface
Automatic Reverse Pulse Self Cleaning
High Capture Face Velocity (425 FPM)
5.0HP TEFC Motor producing 4300 CFM of airflow
Multi-stage Spark Arrestence Baffling
Dual 10″ exhaust silencers included

Specifications

Filter Cleaning Method	Auto reverse-pulse system
Avg. Air Flow (CFM)	4300 @ 4″ static pressure
Avg. Face Velocity (FPM)	425
Motor H.P.	5.0
Phase (hz)	three-phase
F.L.A. @ 230V/460V/575V	15.2 / 7.6 / 6.1
Worksurface (in.)	48″W x 48″L
Footprint (in.)	63″W x 39″H x 49″L
Weight (lbs.)	550
Sound Level (dB)	79 @ 5′

Filter Specifications

Prefilter

Type	Metal Mesh spark arrestor
Filter Material	Galvanized Steel
Qty. Required	4

Primary Filter

Filter Media	Nanotech Nanofiber Cartridge Filter
Efficiency	MERV 15
Qty. Required	2

Videos

Photo Gallery

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W14-4

Manual (.PDF)

DD Dual-Sided 4′ X 4′ Downdraft Table WGD | 4300CFM

14,519 ^{USD $}

Only logged in customers may leave a review.

The DD series industrial downdraft tables are the trusted choice of North America’s largest manufacturers. Heavy duty applications producing smoke, dust, or fumes can now be contained right at the source. This ventilated, dual-sided, 4′ by 4′ work surface (DD-4X4) can be configured to suit dozens of industrial applications. As standard, the table comes fitted with a multi-stage spark arrestance baffle, dual 10″ exhaust silencers, and an automatic reverse-pulse filter cleaning system.
