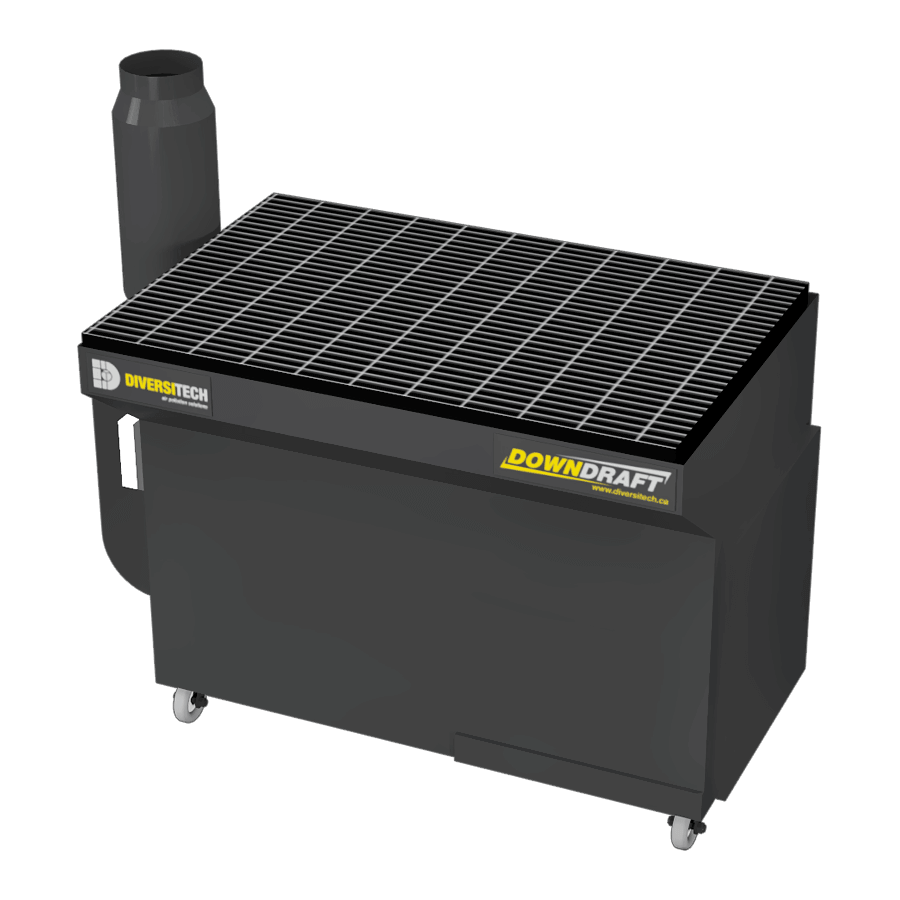

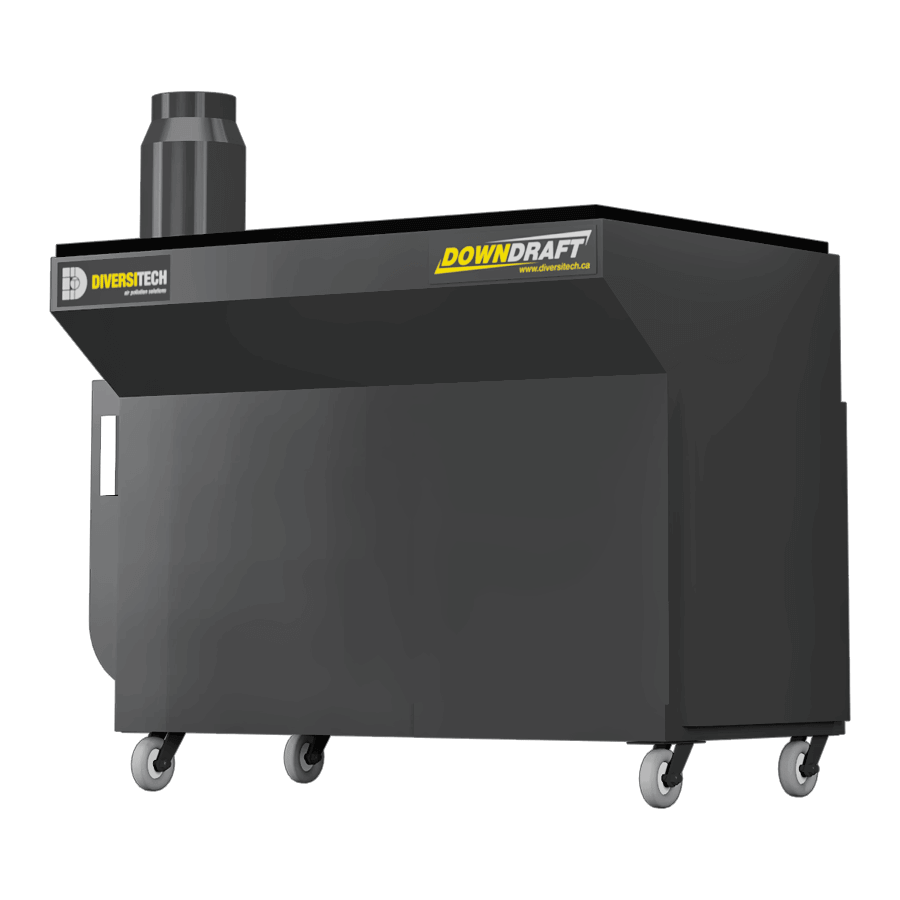

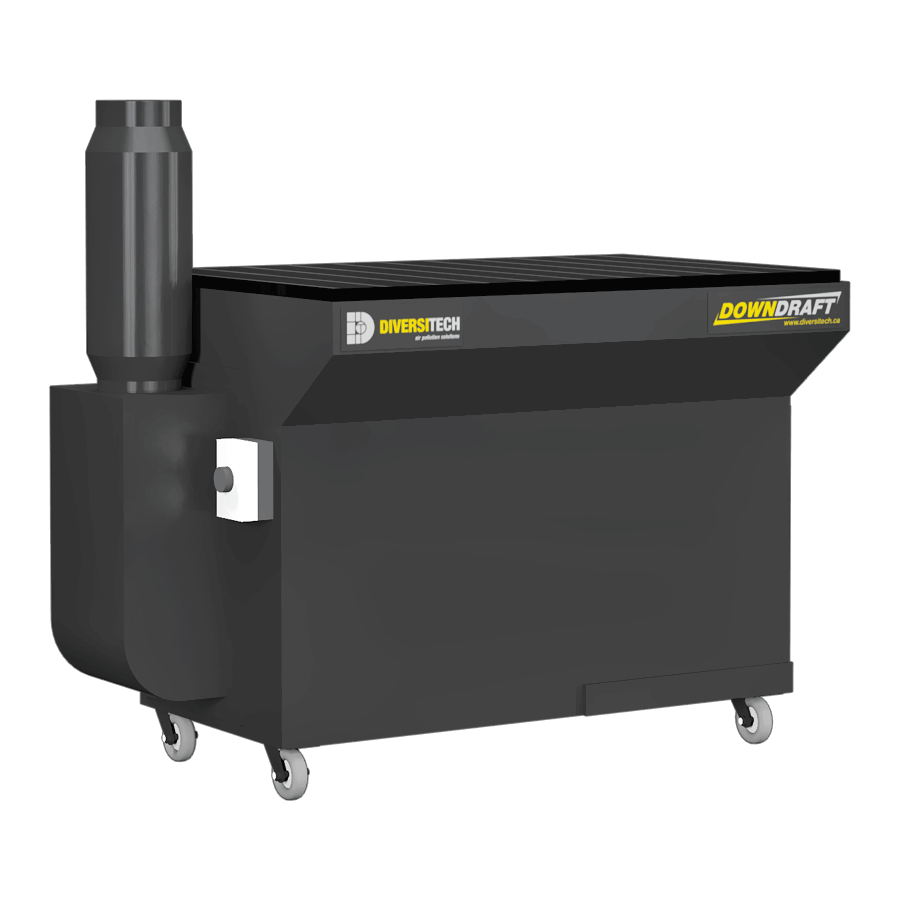

DD-2X4 Base Downdraft Table, Portable (Three Phase)
DD2x4-BASIC-3HP-3DD2x4-BASIC-3HP-1DD2x4-BASIC-3HP-2DD2x4-BASIC-3HP-4DD-2X4 Downdraft Table Dust DrawerDD-2X4 Downdraft Table Filter DoorDowndraft Table Steel Grate
Specifications
  • Filter Cleaning Method
Push-button, Reverse Pulse
  • Avg. Air Flow (CFM)
2600 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
450
  • Motor H.P.
3.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
8.0 / 4.0 / 3.1
  • Worksurface (in.)
48″ W x 32″L
  • Footprint (in.)
48″ W x 39″H x 32″L
  • Weight (lbs.)
280
  • Sound Level (dB)
75 @ 5′

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

24-pages ‧ English ‧ W16-2

Manual (.PDF)

DD 2′ X 4′ Downdraft Table | 2600CFM

, , ,


Only logged in customers may leave a review.


With a 2’x4′ ventilated worksurface, and a powerful 3.0 HP three-phase input power motor, this  portable downdraft table series ensures flexible use as your pollution control needs change. These tables are fitted with industrial swivel castors, and an industry leading, high efficiency, nanofiber or polyester cartridge filter. Now any fumes, smoke, or dust from your shop activities can be captured right as they are produced, before compromising your indoor air quality.

  • Flexible 32″ x 48″ worksurface
  • On-demand, Reverse Pulse, Self Cleaning
  • Multi-stage Spark Arrestence Baffling
  • Industrial swivel-castors included
  • Three-phase power (230V/460V/575V)
  • 3.0HP TEFC Motor (2600 CFM airflow)
  • High Capture Face Velocity (450 FPM)
  • Dust Drawer for easy servicing

Build-to-Order

Base

?
Clear

Input voltage (required) *

TABLE SURFACE SETUP (REQUIRED) *

PRIMARY FILTER SETUP (REQUIRED) *

ENCLOSURES (optional)

UPGRADES (optional)

234 USD $
354 USD $
1,854 USD $
