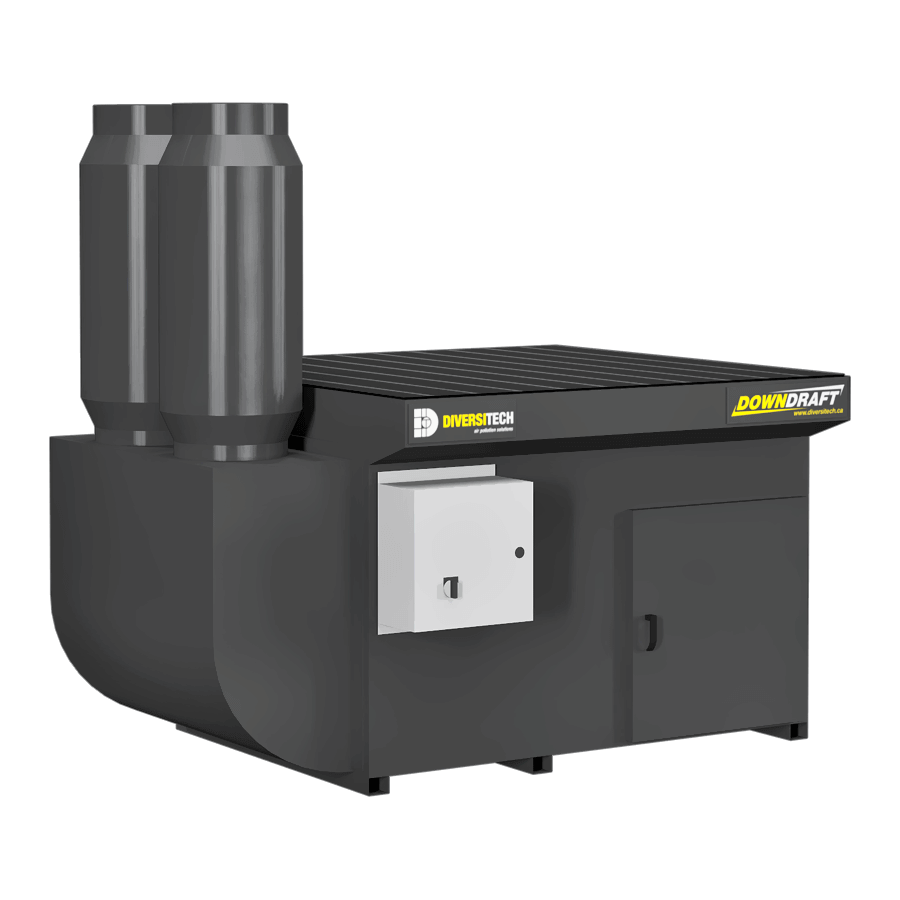

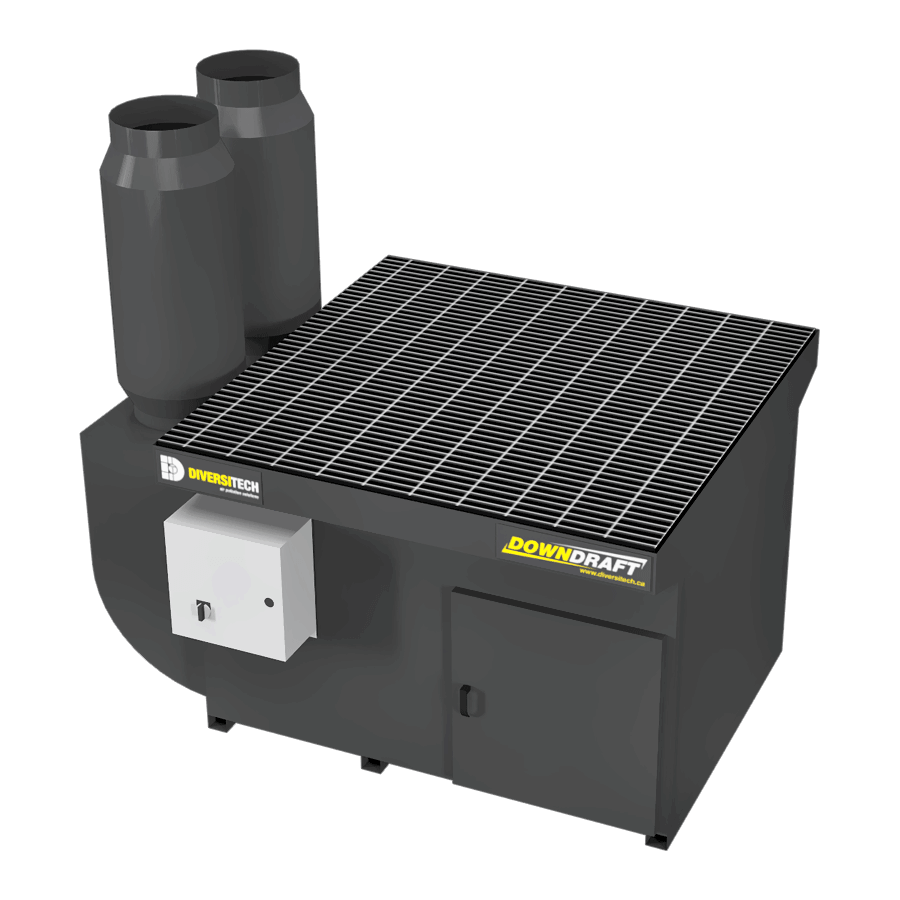

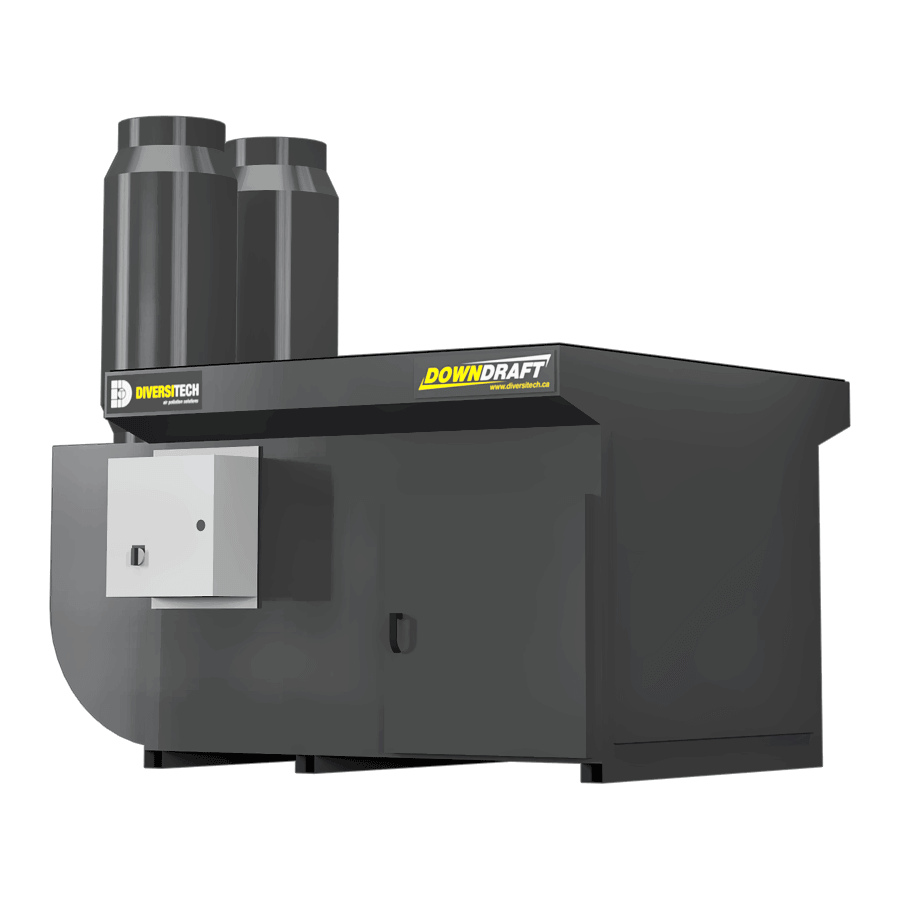

DD-4X4 Base Downdraft Table, Portable (Three Phase)
DD4x4-BASIC-1DD4x4-BASIC-2DD4x4-BASIC-3DD4x4-BASIC-4Downdraft Table Steel GrateIndustrial Downdraft Table Filter DoorIndustrial Downdraft Table Dust Door
  • Filter Cleaning Method
Auto reverse-pulse system
  • Avg. Air Flow (CFM)
4300 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
  • Motor H.P.
  • Phase (hz)
  • F.L.A. @ 230V/460V/575V
15.2 / 7.6 / 6.1
  • Worksurface (in.)
48″W x 48″L
  • Footprint (in.)
63″W x 39″H x 49″L
  • Weight (lbs.)
  • Sound Level (dB)
79 @ 5′

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)


20-pages ‧ English ‧ W14-4

Manual (.PDF)

DD Dual-Sided 4′ X 4′ Downdraft Table | 4300CFM

, , ,

Only logged in customers may leave a review.

The DD series industrial downdraft tables are the trusted choice of North America’s largest manufacturers. Heavy duty applications producing smoke, dust, or fumes can now be contained right at the source. This ventilated, dual-sided, 4′ by 4′ work surface (DD-4X4) can be configured to suit dozens of industrial applications. As standard, the table comes fitted with a multi-stage spark arrestance baffle, dual 10″ exhaust silencers, and an automatic reverse-pulse filter cleaning system.

  • Flexible, dual-sided 48″ x 48″ worksurface
  • Automatic Reverse Pulse Self Cleaning
  • Multi-stage Spark Arrestence Baffling
  • Dual 10″ exhaust silencers included
  • 5.0HP TEFC Motor (4300 CFM airflow)
  • High Capture Face Velocity (425 FPM)
  • Three-phase power (230V/460V/575V)
  • Dust Drawer for easy servicing




Input voltage (required) *



ENCLOSURES (optional)


188 $
361 $
369 $
1,822 $
1,742 $
2,957 $
