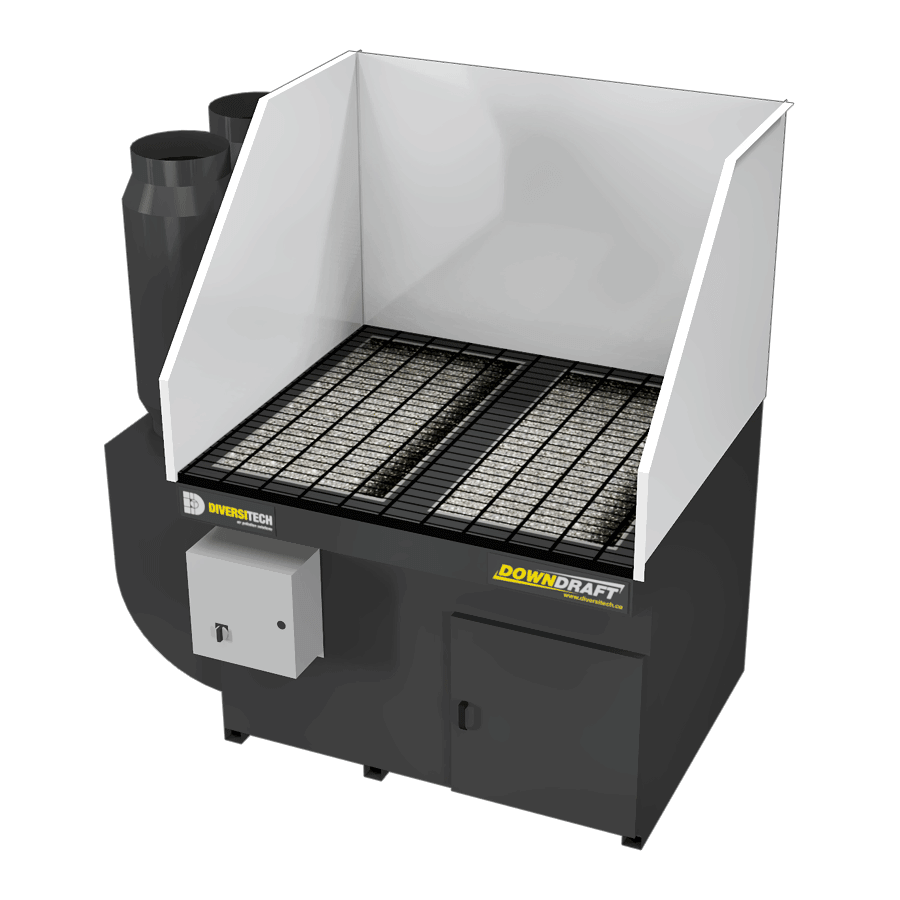

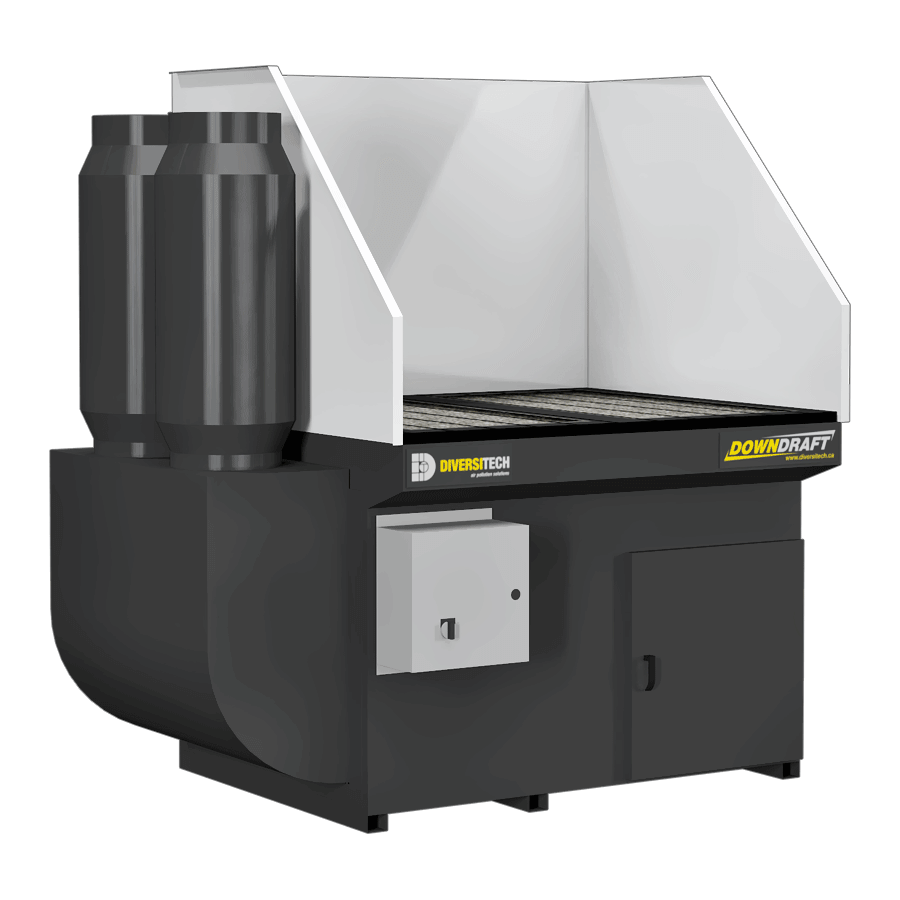

DD-3X4 Downdraft Table for Oxy and Plasma Cutting
DD3x4-PLA-1DD3x4-PLA-2DD3x4-PLA-3DD3x4-WGD-4Industrial Downdraft Table Filter DoorIndustrial Downdraft Table Dust DoorIndustrial Downdraft Table Plasma Cutting Slag Prefilter
Features
  • Flexible 48″ x 42″ worksurface
  • Automatic Reverse Pulse Self Cleaning
  • High Capture Face Velocity (450 FPM)
  • 5.0HP TEFC Motor producing 4300 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Dual 10″ exhaust silencers included
Specifications
  • Filter Cleaning Method
Auto reverse-pulse system
  • Avg. Air Flow (CFM)
4300 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
450
  • Motor H.P.
5.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
15.2 / 7.6 / 6.1
  • Worksurface (in.)
48″ W x 42″L
  • Footprint (in.)
63″W x 39″H x 49″L
  • Weight (lbs.)
450
  • Sound Level (dB)
79 @ 5′
Filter Specifications

Prefilter

  • Type
Metal Mesh spark arrestor
  • Filter Material
Galvanized Steel
  • Qty. Required
2

Primary Filter

  • Filter Media
Nanotech Nanofiber Cartridge Filter
  • Efficiency
MERV 15
  • Qty. Required
2

Nanotech Nanofiber Filter Logo

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W14-4

Manual (.PDF)

DD 3′ X 4′ Downdraft Table PLA | 4300CFM

, , ,


Only logged in customers may leave a review.


The DD series industrial downdraft tables are the trusted choice of North America’s largest manufacturers. Heavy duty applications producing smoke, dust, or fumes can now be contained right at the source. With a ventilated work surface 3′ deep by 4′ wide (DD-3X4) can be configured to suit dozens of industrial applications. As standard, the table comes fitted with a multi-stage spark arrestance baffle, dual 8″ exhaust silencers, and an automatic reverse-pulse filter cleaning system.

Plasma Cutting Kit includes:

  • Side & Back Walls
  • 2″ Steel Bar Grating
  • Slag Collection Baffle
  • Vertical Metal Mesh Prefilters
  • Nanotech XV high-efficiency Primary Filters (2)

Voltage

?
Clear

ENCLOSURE OPTIONS

744 $
993 $

BUILD OPTIONS

188 $
369 $
1,368 $
1,742 $
2,957 $
