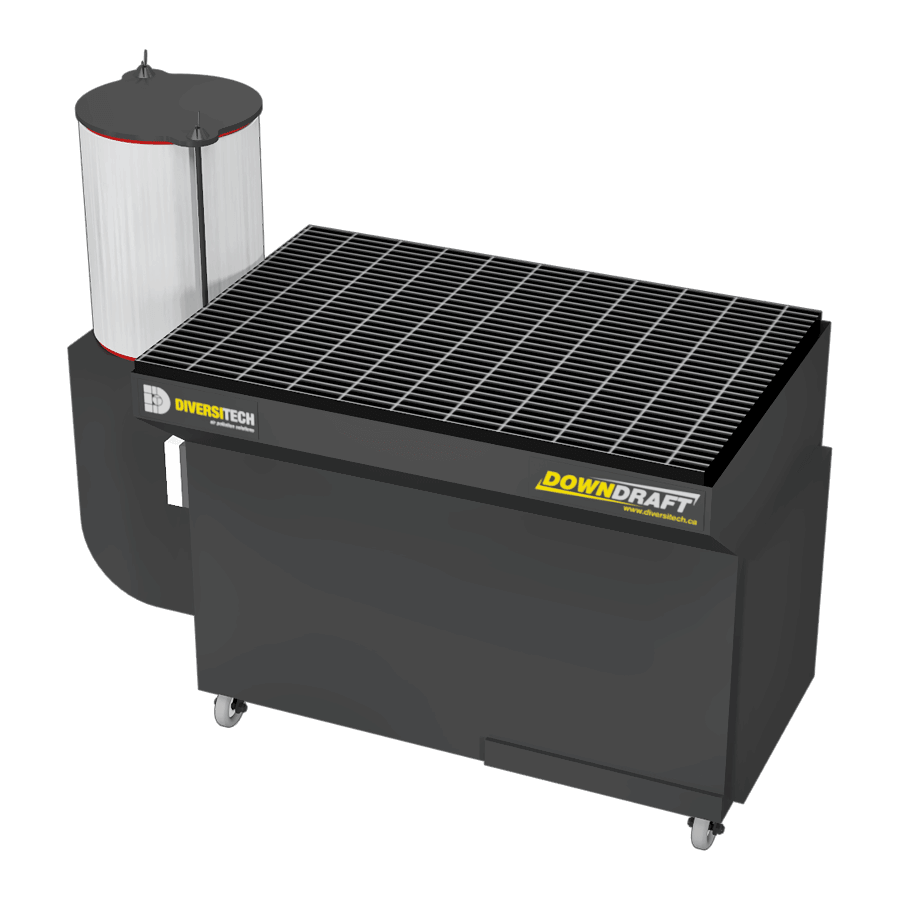

DD-2X4 Downdraft Table for Volatile Organic Compounds (VOCs)
DD-2X4 Downdraft Table for Volatile Organic Compounds (VOCs)DD-2X4 Downdraft Table for Volatile Organic Compounds (VOCs)DD-2X4 Downdraft Table for Volatile Organic Compounds (VOCs)DD-2X4 Downdraft Table for Volatile Organic Compounds (VOCs)DD2x4-VOC-SBW-3DD2x4-VOC-SBW-2
  • Flexible 32″ x 48″ worksurface
  • On-demand, Reverse Pulse, Self Cleaning
  • High Capture Face Velocity (340 FPM)
  • 1.5HP TEFC Motor producing 1500 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Industrial swivel-castors included
  • Filter Cleaning Method
Push-button, Reverse Pulse
  • Avg. Air Flow (CFM)
1500 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
  • Motor H.P.
  • Phase (hz)
  • F.L.A. @ 120V
  • Worksurface (in.)
48″ W x 32″L
  • Footprint (in.)
48″ W x 39″H x 32″L
  • Weight (lbs.)
  • Sound Level (dB)
75 @ 5′
After Filter

Carbotech Filter Logo

  • Efficiency
Removes up to 99.5% of odors
  • Media Thickness
  • Filter Media
4mm high-porosity, activated carbon
  • Reversible
Yes, twist-lock end cap
  • Maximum Temperature
180F / 82C
  • Canister Material
galvanized steel & poly-carbonate

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)


24-pages ‧ English ‧ W16-2

Manual (.PDF)

2′ X 4′ Downdraft Table VOC | 1500CFM

, , , ,

Only logged in customers may leave a review.

This version of our 2’x4′ Downdraft Table is designed to contain odors, fumes, and especially Volatile Organic Compounds (VOC) from activities like spray painting, varnishing, coating, or working with solvents and adhesives. The side-mounted canister-type afterfilter, filled with exuded activated carbon, allows for indoor re-circulation while protecting air quality. The VOC kit upgrades the our downdraft table with:

Choosing the right primary filter will depend on the type of chemical fumes or overspray to be contained. Below are some general guidelines, but do Contact Us if you would like our Application Engineers to recommend a filtration setup, specific to your application.

PolyTech Cartridge
NanoTech Cartridge
Paint Arrestor
  • Spundbond polyester, water washable, best for wet/sticky spray applications
  • Nanofiber, high efficiency, best for applications with a mix of dust and fumes
  • Low-cost, disposable filter media prevents overspray from clogging filters

Paint Arrestor media can be installed as pre-filter (under grate), and/or as a primary filter (wrapped around a perforated canister).

Filter Media


Enclosures (optional)

937 $
1,639 $
1,875 $

Upgrades (optional)

234 $
354 $
22 $
115 $
