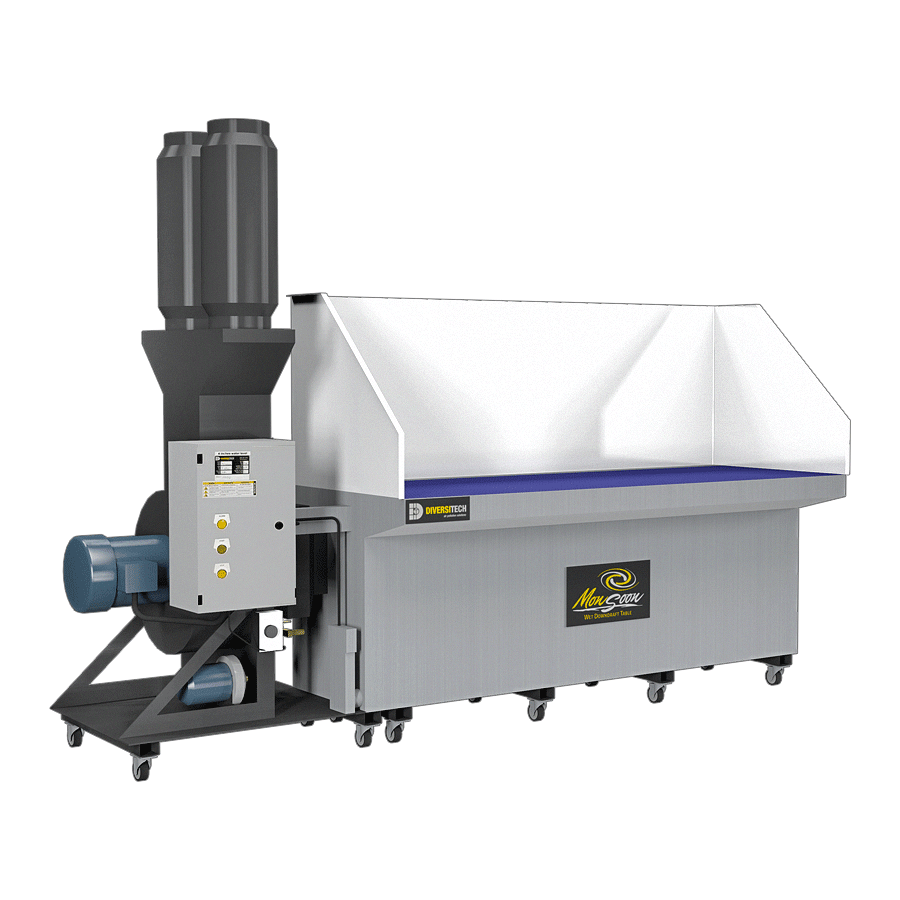

MDD-3X8 Monsoon Wet Downdraft Table auto wash-down kit
3x8Monsoon-AWW-13x8Monsoon-AWW-23x8Monsoon-AWW-33x8Monsoon-AWW-4
Features
  • Flexible 96″ x 36″ worksurface
  • Auto Water-level System
  • Auto Wash-down System
  • Stainless Steel Construction
  • 15.0HP TEFC Motor producing 5000 CFM of airflow
  • Heavy-duty Steel Bar Grating with Protective Mat
  • Mist Eliminator After-filter, 99% @ 3 microns
  • NEMA 12 Control Panel with Overload Protection
Specifications
  • Water Fill System
Auto
  • Nominal Air Flow (CFM)
5000
  • Avg. Face Velocity (FPM)
230
  • Motor H.P.
15.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
28.0 / 14.0 / 11.0
  • Worksurface (in.)
96″W x 36″L
  • Footprint (in.)
141″W x 39″H x 44″L
  • Weight (lbs.)
TBD
  • Sound Level (dB)
86 @ 5′

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W15-3

Manual (.PDF)

MONSOON 3′ X 8′ AWW

,


Only logged in customers may leave a review.


The MONSOON™ Wet Downdraft Table product series delivers the safe capture of hazardous/combustible dusts with the smallest equipment footprint in the industry. Small footprint means no permanent ducting. The self-contained, mobile design allows for plug and play installation and easy relocation. A powerful, side-mounted 15.0HP TEFC motor delivers high face-velocity across a versatile 8′ wide by 3′ deep ventilated work surface. The Monsoon 3X8 complies with all OSHA & NFPA guidelines for safe capture of combustible dust.

Auto Wash-down package includes:

  • Side & Back Walls
  • 12-nozzle Auto Wash-down System and 1.0HP water pump

The Auto Wash-down System circulates water from the basin to the wet downdraft table surface, and continually sprays down the table surfaces through nozzles, preventing an accumulation of combustible dust. Excellent option for applications with finer dusts that tend to accumulate at the surface.
