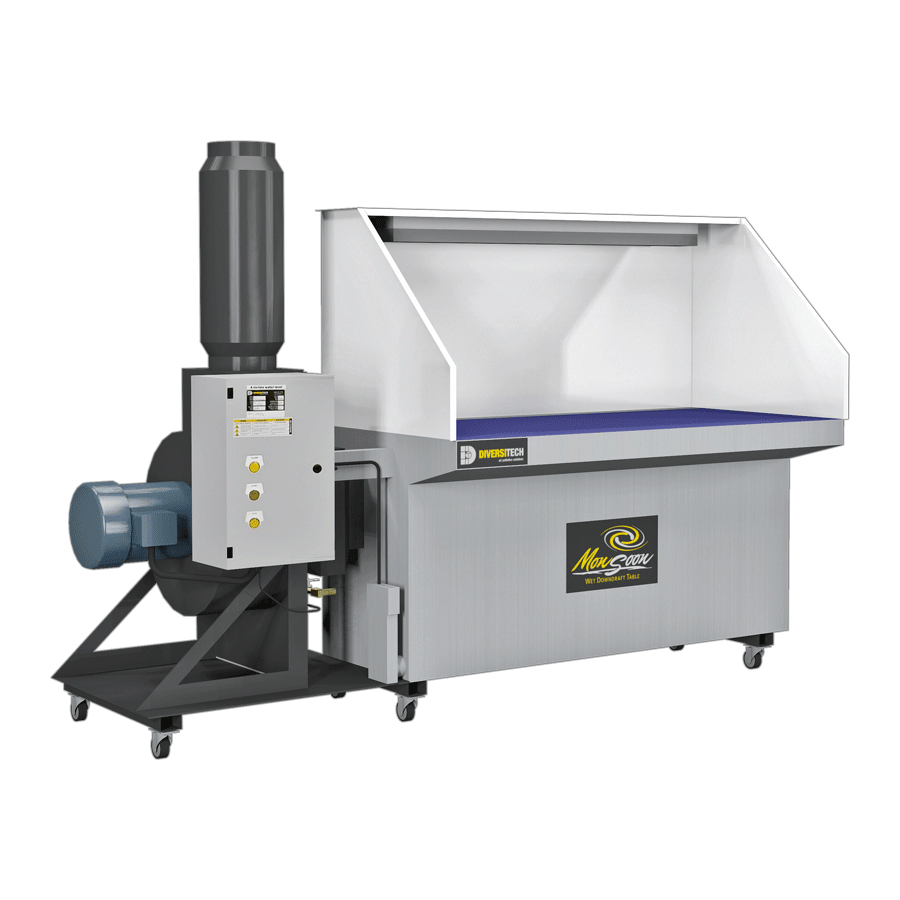

3X6 Monsoon Wet Downdraft Table for aluminum grinding and deburring
3x6Monsoon-GDS-13x6Monsoon-GDS-23x6Monsoon-GDS-33x6Monsoon-GDS-4
Features
  • Flexible 72″ x 36″ worksurface
  • Auto Water-level System
  • Stainless Steel Construction
  • 10.0HP TEFC Motor producing 5000 CFM of airflow
  • Heavy-duty Steel Bar Grating with Protective Mat
  • Mist Eliminator After-filter, 99% @ 3 microns
  • NEMA 12 Control Panel with Overload Protection
Specifications
  • Water Fill System
Auto
  • Nominal Air Flow (CFM)
5000
  • Avg. Face Velocity (FPM)
250
  • Motor H.P.
10.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
28.0 / 14.0 / 11.0
  • Worksurface (in.)
72″W x 36″L
  • Footprint (in.)
113″W x 39″H x 44″L
  • Weight (lbs.)
TBD
  • Sound Level (dB)
78 @ 5′

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W15-3

Manual (.PDF)


Only logged in customers may leave a review.


The MONSOON™ Wet Downdraft Table product series delivers the safe capture of hazardous/combustible dusts with the smallest equipment footprint in the industry. Small footprint means no permanent ducting. The self-contained, mobile design allows for plug and play installation and easy relocation. A powerful, side-mounted 10.0HP TEFC motor delivers high face-velocity across a versatile 6′ wide by 3′ deep ventilated work surface. The Monsoon 3X6 complies with all OSHA & NFPA guidelines for safe capture of combustible dust.

Grinding, Deburring, and Sanding package includes:

  • Side & Back Walls with top-plate
  • 48″ dust/vapor proof Light Kit
