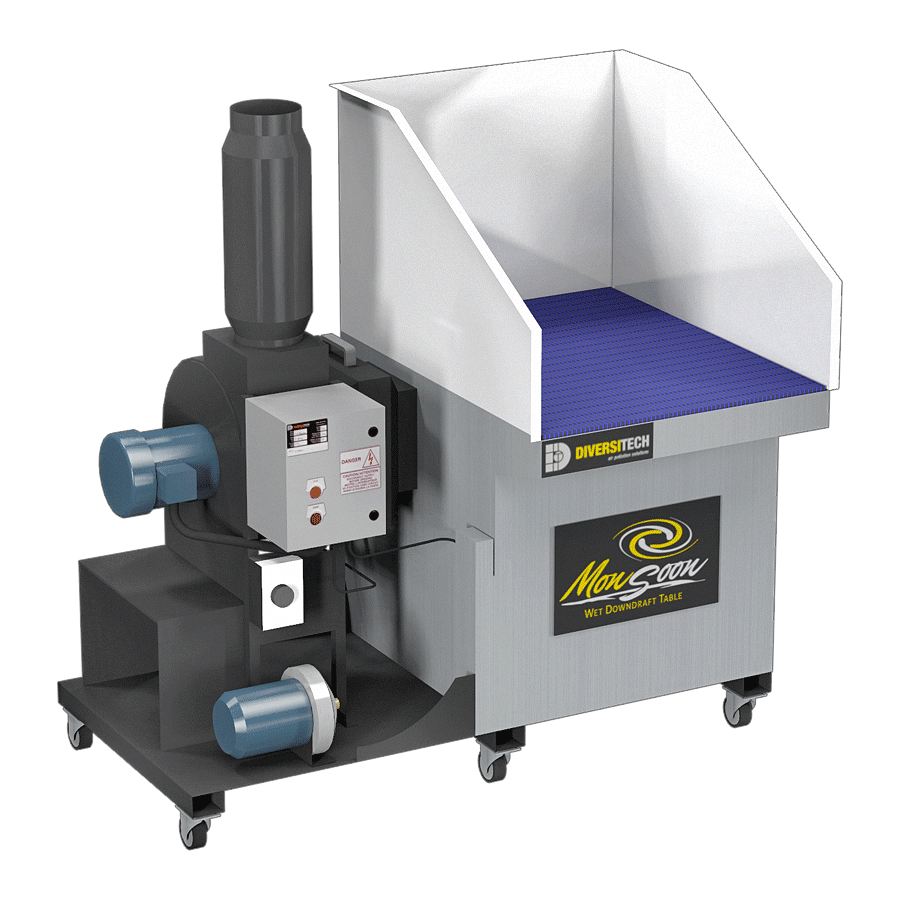

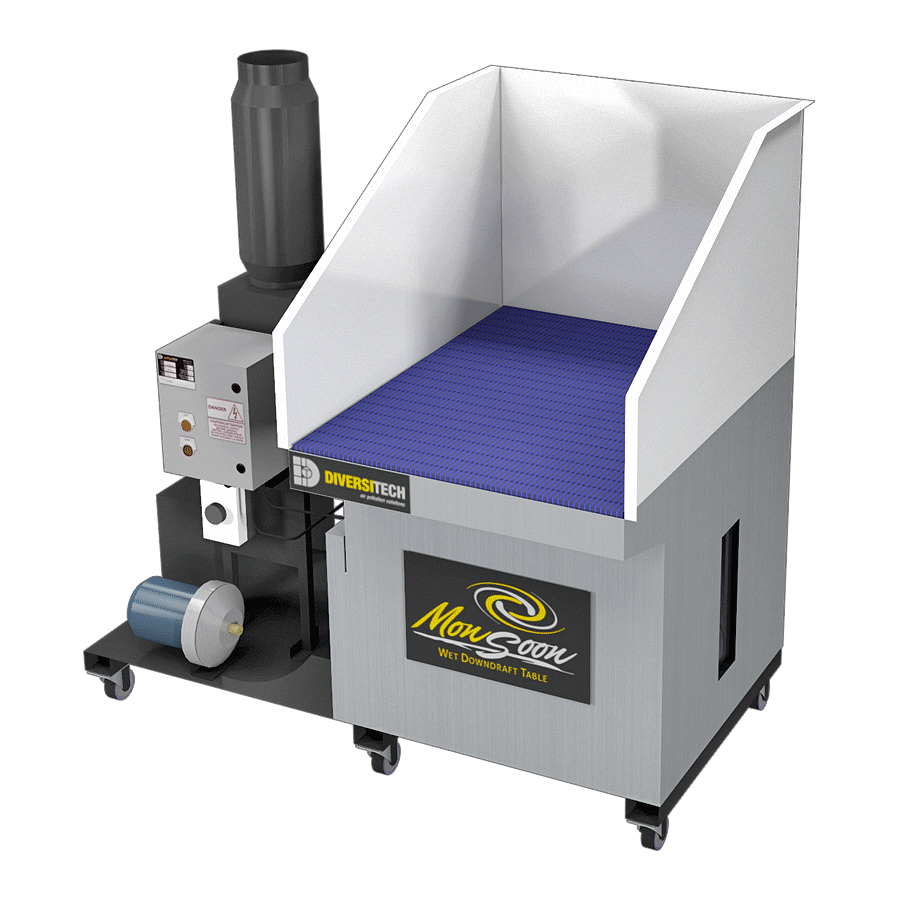

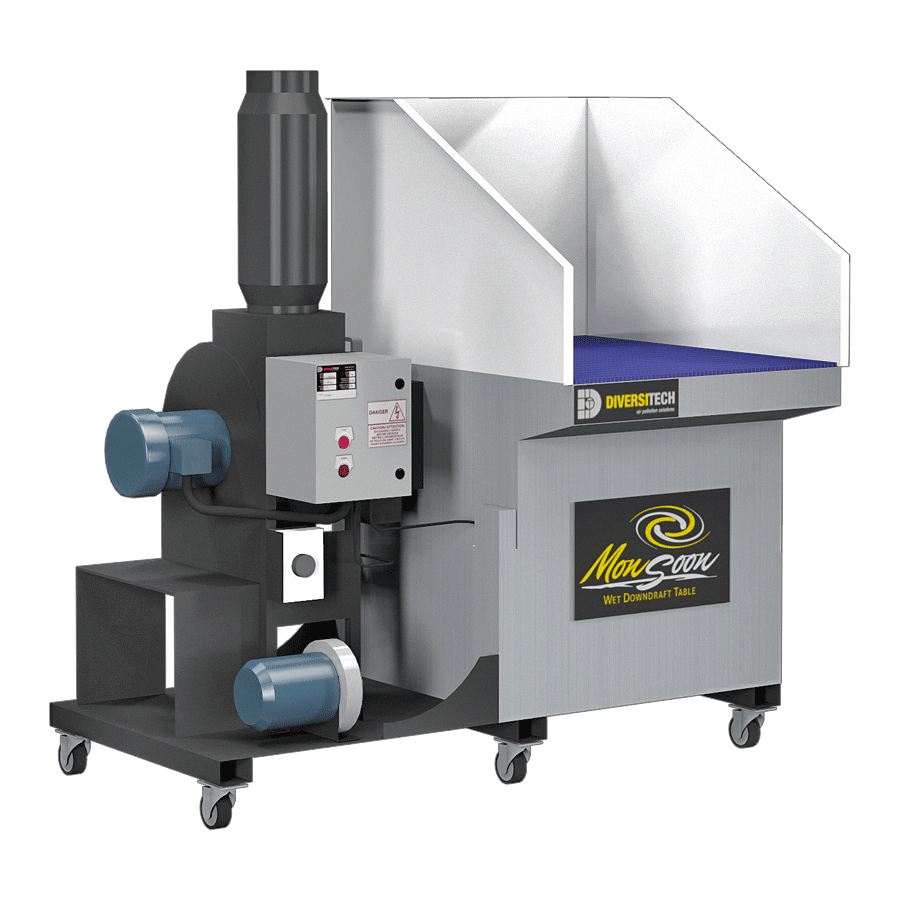

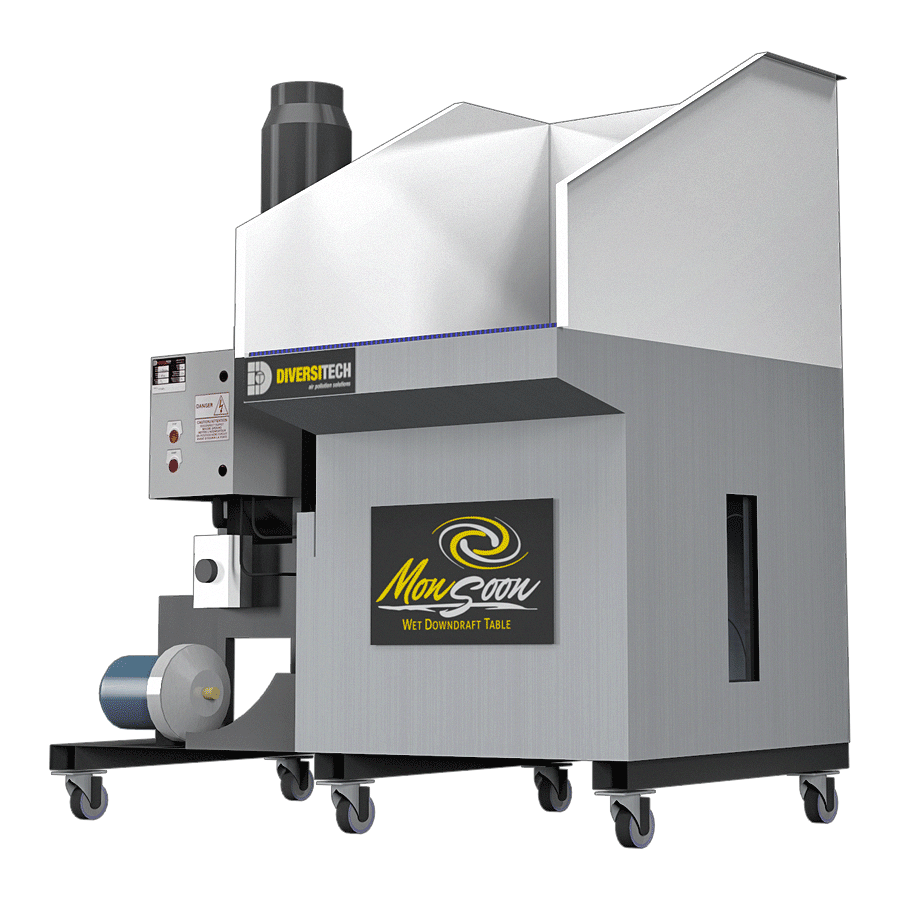

MDD-MINI Monsoon Wet Downdraft Table auto wash-down kit
  • Flexible 38″ x 36″ worksurface
  • Auto Water-level System
  • Auto Wash-down System
  • Stainless Steel Construction
  • 3.0HP TEFC Motor producing 1200 CFM of airflow
  • Heavy-duty Steel Bar Grating with Protective Mat
  • Mist Eliminator After-filter, 99% @ 3 microns
  • NEMA 12 Control Panel with Overload Protection
  • Water Fill System
  • Nominal Air Flow (CFM)
  • Avg. Face Velocity (FPM)
  • Motor H.P.
  • Phase (hz)
  • F.L.A. @ 230V/460V/575V
9.6 / 4.8 / 3.9
  • Worksurface (in.)
38″W x 36″L
  • Footprint (in.)
60″W x 39″H x 42″L
  • Weight (lbs.)
  • Sound Level (dB)
72 @ 5′

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)


20-pages ‧ English ‧ W15-3

Manual (.PDF)



Only logged in customers may leave a review.

The MONSOON™ Wet Downdraft Table product series delivers the safe capture of hazardous/combustible dusts with the smallest equipment footprint in the industry. Small footprint means no permanent ducting. The self-contained, mobile design allows for plug and play installation and easy relocation. A powerful, side-mounted 3.0HP TEFC motor delivers high face-velocity across a versatile 38″ wide by 36″ deep ventilated work surface. The Monsoon MINI complies with all OSHA & NFPA guidelines for safe capture of combustible dust.

Auto Wash-down + Auto Water-level package includes:

  • Side & Back Walls
  • 4-nozzle Auto Wash-down System and 1.0HP water pump
  • Auto Water-level Control System

The Auto Wash-down System circulates water from the basin to the wet downdraft table surface, and continually sprays down the table surfaces through nozzles, preventing an accumulation of combustible dust. Excellent option for applications with finer dusts that tend to accumulate at the surface. The auto water-level control system eliminates the need to manually add water lost from evaporation.




737 USD $
741 USD $
1,478 USD $


206 USD $
3,460 USD $
