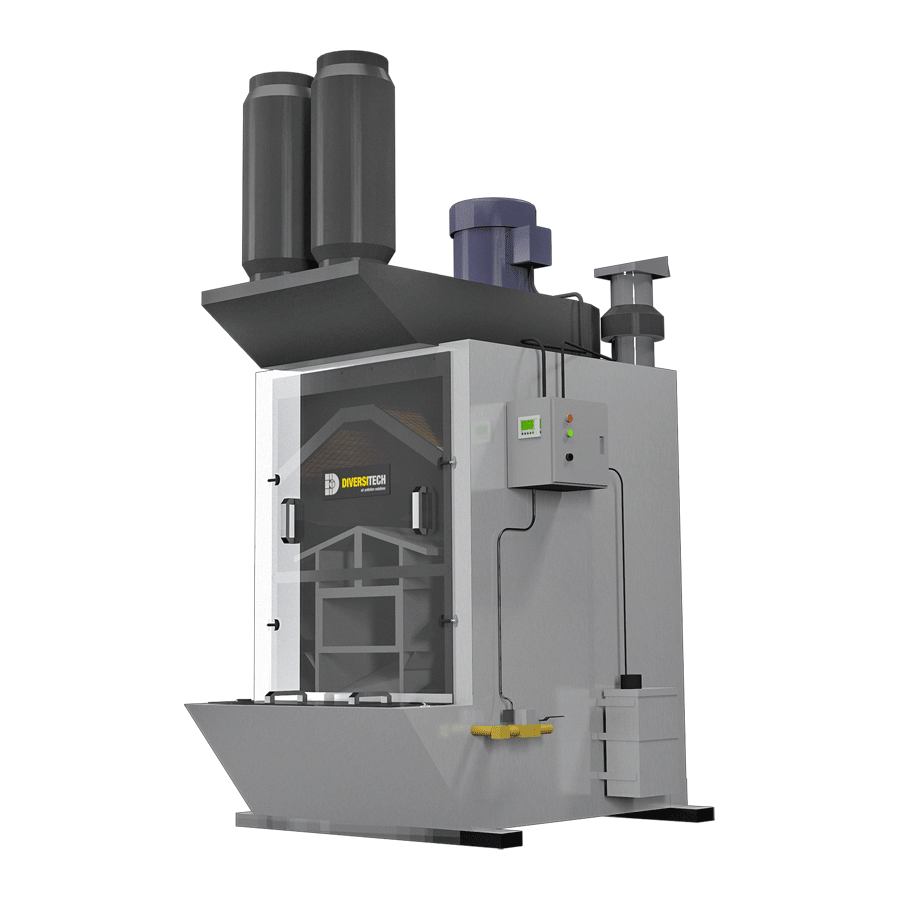

WX-5000 Wet Dust Collector for Combustible Dust (Three Phase)
WX5000-1WX5000-2WX5000-3WX5000-4
Features
  • Ultrasonic Automatic Water-level System
  • Offline Vent Fan
  • Anti-corrosion stainless steel
  • NEMA 4x control panel w/LCD display
  • Mainline interlock switch
  • Transparent lexan doors, with easy access clasps
  • High efficiency, non-sparking blower wheel

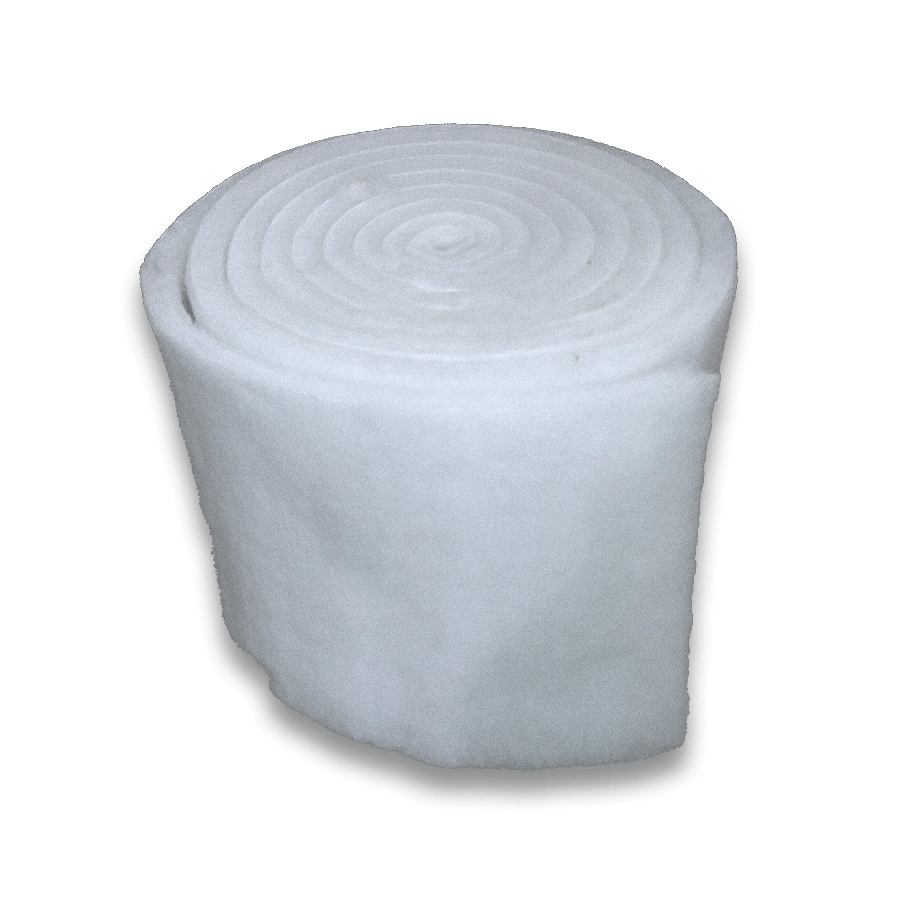

  • Low-cost mist eliminator after filters
  • Dual exhaust silencers included
Specifications
  • Water Fill System
Ultasonic\Adaptive (fills while online)
  • Nominal Air Flow (CFM)
3000-5000
  • Tank Capacity (Gallons)
80
  • Motor H.P.
10.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
28.0 / 14.0 / 11.0
  • Inlet Diameter (in.)
16
  • Footprint (in.)
57″W x 117″H x 61″L
  • Weight (lbs.)
TBD
  • Sound Level (dB)
78 @ 5′
Ideal Applications
  • aluminium
grinding & deburring dust
  • magnesium
sanding & finishing dust
  • titanium
powder mixing
  • niobium
wide belt sanding
  • tantalum
buffing & polishing

Product info

2-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

2-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W17-1

Manual (.PDF)
22,420 $

Only logged in customers may leave a review.


To safely capture of hazardous/combustible dusts, such as Aluminum and Magnesium, NFPA now requires the use of a Wet Dust Collector or Wet Downdraft Table. Our WX-Series collectors feature a unique water-tree baffle, that creates a cascading water effect, removing dangerous particles as small as 3 micron from the air-stream. Dust is filtered though contact with the water droplets and contained in the bottom of the collector for safe removal at necessary maintenance intervals. Build for long duty-cycles, the WX-5000 uses an ultrasonic water sensor, and automatically adds water as needed – even during operation. Stainless steel construction on all water-exposed components, and a powerful 10.0HP TEFC motor delivering up to 5000CFM at 2.5″ external static pressure.

NFPA Compliant

In 2015, NFPA updated the 484 standard requiring an interlocked offline vent fan, to prevent build-up of hydrogen gas – now included as standard on all WX-Series models. NFPA also now requires a high temperature alert any time an optional HEPA after-filter is used. Diversitech’s CSA/UL certified control panel includes a high temperature alert (pre-installed) for an optional HEPA filter, or other temperature sensitive application.
