Features
  • Flexible 48″ x 42″ worksurface
  • Automatic Reverse Pulse Self Cleaning
  • High Capture Face Velocity (450 FPM)
  • 5.0HP TEFC Motor producing 4300 CFM of airflow
  • Multi-stage Spark Arrestence Baffling
  • Dual 10″ exhaust silencers included
Specifications
  • Filter Cleaning Method
Auto reverse-pulse system
  • Avg. Air Flow (CFM)
4300 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
450
  • Motor H.P.
5.0
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
12.0 / 6.0 / 4.6
  • Worksurface (in.)
48″ W x 42″L
  • Footprint (in.)
63″W x 39″H x 49″L
  • Weight (lbs.)
450
  • Sound Level (dB)
79 @ 5′

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W14-4

Manual (.PDF)


Only logged in customers may leave a review.


Downdraft\Backdraft Booth
Welding, Grinding, and Deburring

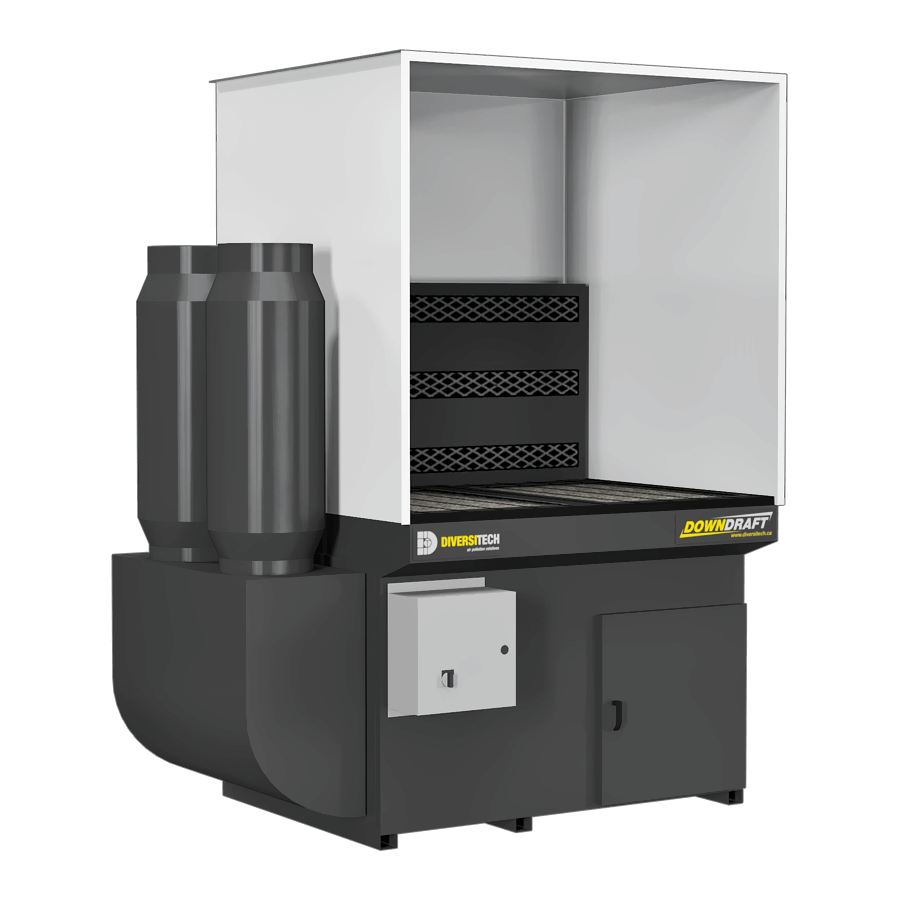

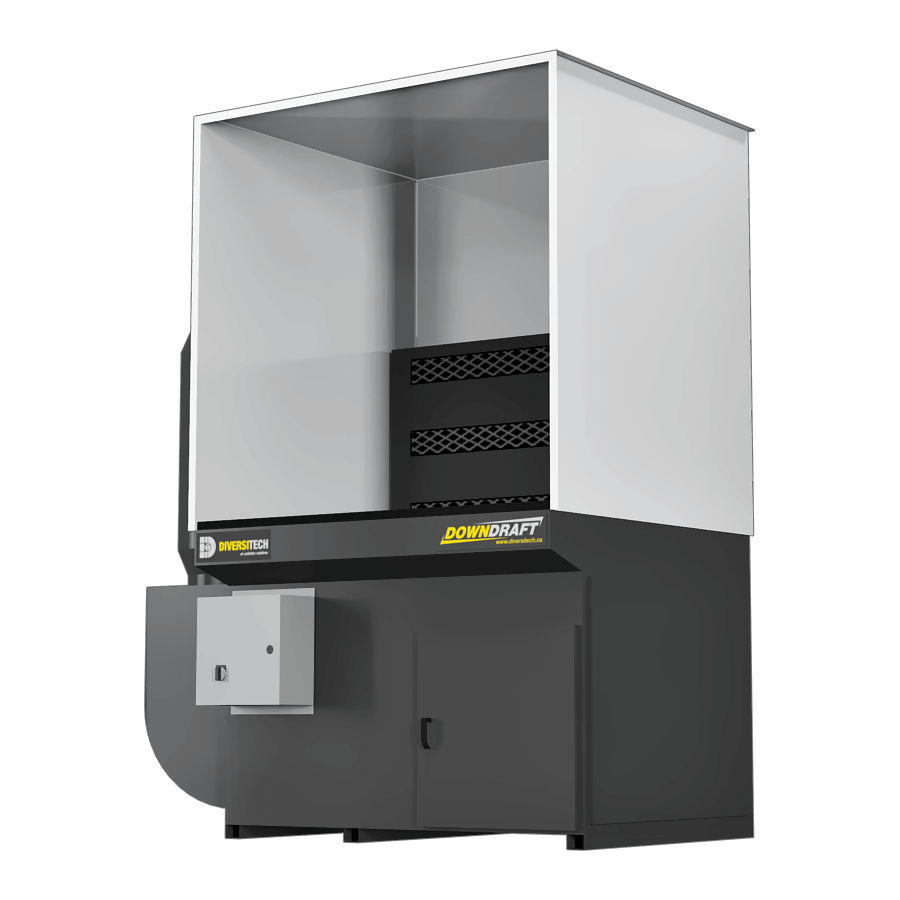

By combining downdraft ventilation with backdraft suction, and enclosing the workspace’s top, back and sides with steel walls, the result is a booth-style workstation capable of containing your toughest pollutants. This 3′ x 4′ (DD-3X4) Downdraft\Backdraft Booth is setup for Plasma & Oxy Cutting includes:

  1. Backdraft Hood with Airflow Control Grates
  2. Full-depth Side & Back Walls, 48″H
  3. Dust & Vapor Proof Light with top plate
  4. 2″ thick steel grates that protect the table from the cutting arc
  5. Crushed gavel baffle tray for safe slag collection
  6. Vertical metal mesh prefilters that extinguish sparks in the airstream

Base

?
Clear

CHOOSE INPUT VOLTAGE (REQUIRED)

CHOOSE A FILTER (REQUIRED)

BUILD UPGRADES (optional)

188 $
369 $
1,742 $
2,957 $
