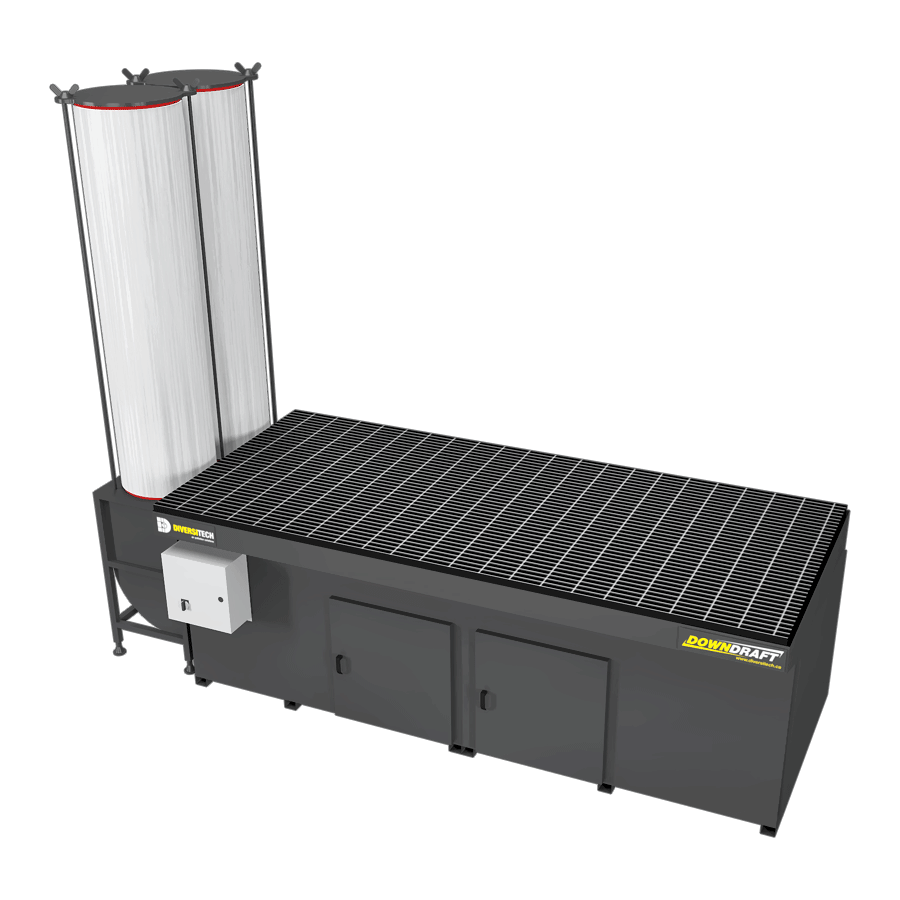

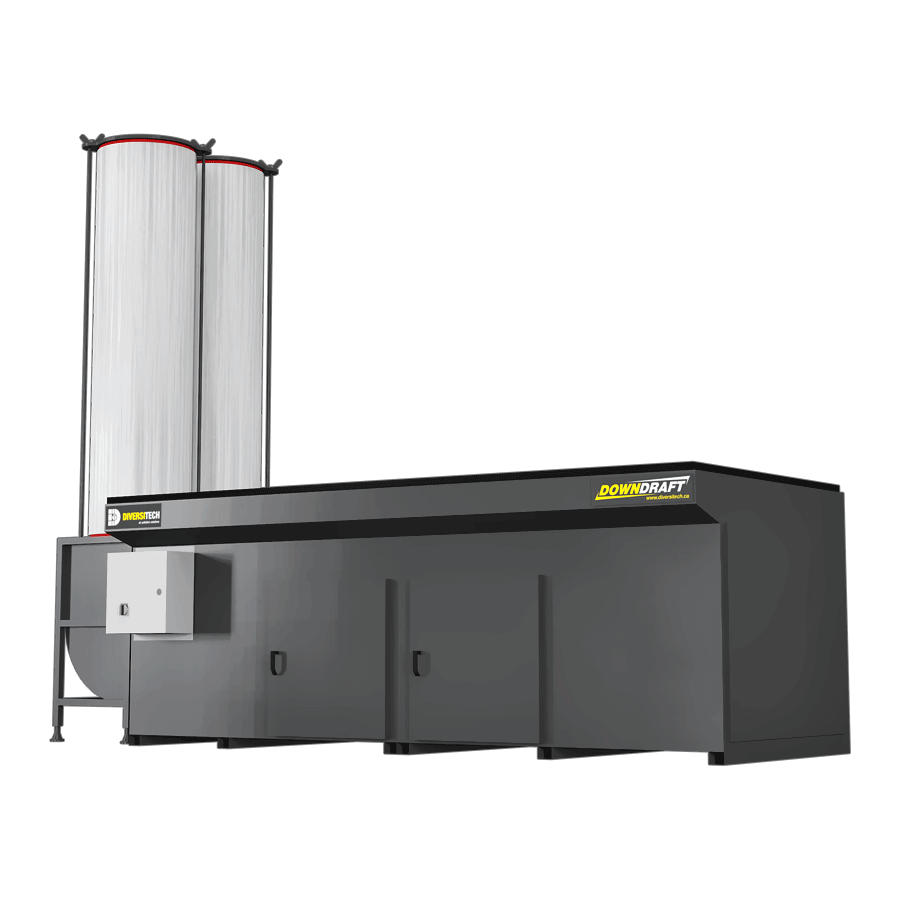

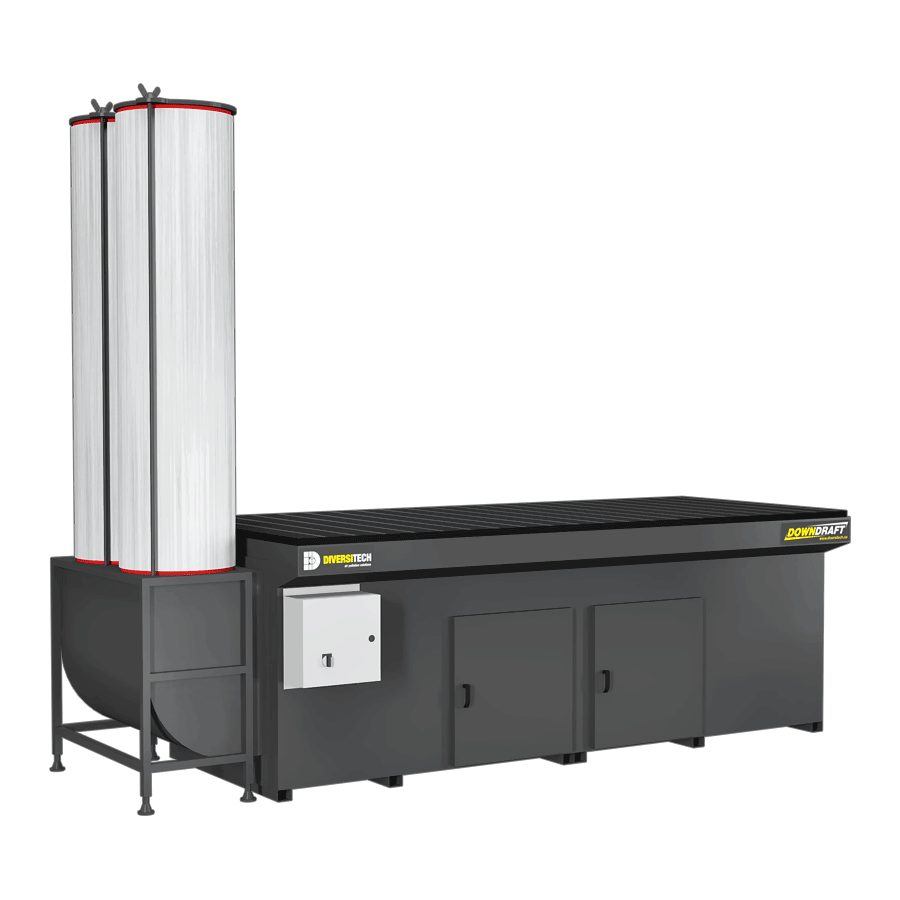

DD-3X8 Downdraft Table for Volatile Organic Compounds (VOCs)
DD-3X8 Downdraft Table for Volatile Organic Compounds (VOCs)DD-3X8 Downdraft Table for Volatile Organic Compounds (VOCs)DD-3X8 Downdraft Table for Volatile Organic Compounds (VOCs)DD-3X8 Downdraft Table for Volatile Organic Compounds (VOCs)
Features
  • Flexible 96″ x 42″ worksurface
  • Automatic Reverse Pulse Self Cleaning
  • High Capture Face Velocity (330 FPM)
  • 7.5HP TEFC Motor producing 5050 CFM of airflow
  • Up to three-stages of filtration
Specifications
  • Filter Cleaning Method
Auto reverse-pulse system
  • Avg. Air Flow (CFM)
5050 @ 4″ static pressure
  • Avg. Face Velocity (FPM)
330
  • Motor H.P.
7.5
  • Phase (hz)
three-phase
  • F.L.A. @ 230V/460V/575V
22 / 11 / 9
  • Worksurface (in.)
96″W x 42″L
  • Footprint (in.)
111″W x 39″H x 49″L
  • Weight (lbs.)
600
  • Sound Level (dB)
79 @ 5′
After Filter

Carbotech Filter Logo

  • Filter Media
4mm high-porosity, activated carbon
  • Media Thickness
2.6″
  • Reversible
Yes, twist-lock end cap
  • Maximum Temperature
180F / 82C
  • Canister Material
galvanized steel & poly-carbonate

Product info

4-pages ‧ English ‧ W17-1

Brochure (.PDF)

Product info

4-pages ‧ Spanish ‧ W17-1

Brochure (.PDF)

Maintenance

20-pages ‧ English ‧ W14-4

Manual (.PDF)

3′ X 8′ Downdraft Table VOC | 5050 CFM

, , ,


Only logged in customers may leave a review.


This version of our 3′ x 8′ Downdraft Table is designed to contain odors, fumes, and especially Volatile Organic Compounds (VOC) from activities like spray painting, varnishing, coating, or working with solvents and adhesives. The side-mounted canister-type afterfilter, filled with exuded activated carbon, allows for indoor re-circulation while protecting air quality. The VOC kit upgrades the our downdraft table with:

Choosing the right primary filter will depend on the type of chemical fumes or overspray to be contained. Below are some general guidelines, but do Contact Us if you would like our Application Engineers to recommend a filtration setup, specific to your application.

PolyTech Cartridge
NanoTech Cartridge
Paint Arrestor
  • Spundbond polyester, water washable, best for wet/sticky spray applications
  • Nanofiber, high efficiency, best for applications with a mix of dust and fumes
  • Low-cost, disposable filter media prevents overspray from clogging filters

Paint Arrestor media can be installed as pre-filter (under grate), and/or as a primary filter (wrapped around a perforated canister).

Filter Media

?
Clear

Enclosures (optional)

1,493 USD $
2,752 USD $
2,752 USD $

Upgrades (optional)

22 USD $
115 USD $
375 USD $
428 USD $
369 USD $
